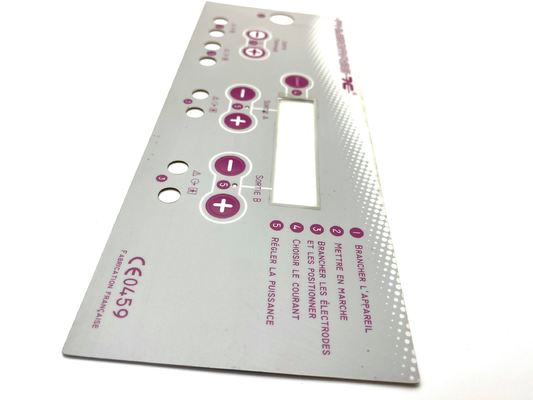

Polyester LED Membrane Keypad Manufacturer With Metal Clike Dome Buttons
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251011-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Carton with foam etc |
| Delivery Time: | 5-7 days for samples making ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 12000 +pcs +a month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | ZIF Connector: | 1.0MM，1.25MM Orother |
|---|---|---|---|
| Buttons Type: | Metal Dome | Color: | Pantone , RAL , CMYK Or Based On The Samples |
| Back Adhesive: | 3M467 Or Other Request | Backlighting: | LED |
| Operating Temperature: | -40℃ To 70℃ | Life Expectancy: | 1 Million Cycles |
Product Description
Polyester LED membrane keypad manufacturer With Metal Clike Dome Buttons
Here are some membrane keypad manufacturers:
- RSP Inc.: Specializes in custom graphic overlays and membrane keypads, offering manufacturing in the USA, India, and Malaysia . They serve industries ranging from medical and industrial controls to consumer electronics and defense .
- CSI Keyboards: A global manufacturer of custom membrane switches and keypads, offering solutions from simple LED indicators to complex multicolored assemblies .They utilize technologies like LEDs, electroluminescence, light guide film, and fiber optics for backlighting and serve the medical, military, and civilian industries.
- ElecFlex: A leading manufacturer of membrane keyboards and keypads, offering reliable and durable products designed with the latest technology and materials.
- Melrose Nameplate & Label: Designs and manufactures custom membrane switches for high-performance applications in the medical, industrial, and defense sectors.
- Niceone-Tech: A membrane keypad manufacturer and supplier in China, offering various membrane keypads including metal and microwave membrane keypads.
- Butler Technologies, Inc.: Manufactures membrane switches and keypads constructed of flexible layers over a printed circuit, serving industries including medical, industrial controls, and consumer electronics .
- NFI Corp: Offers a variety of membrane switch and keypad types, including membrane keypads, touch-screen panels, and custom keypads, with options for NEMA 4 watertight constructions and backlighting .
- Customark Limited: Provides a rapid reacting, high-quality membrane keypad service with zero tooling capability and competitive pricing for both prototyping and production.
- CCL Design: Delivers membrane keypads that meet high-quality standards across a wide range of industries, integrating customized graphics and overlays.
- The Membrane Keyboard Company Ltd (MKC): Supplies innovative and custom HMI solutions, including membrane keypads and keyboards, capacitive touch panels, and silicone rubber keymats.
LED Membrane keypad Switches specifications:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
LED Membrane Keypad Switches Performance Index:
| |||||||||||||||||||||||||||||||||||||||||||||||||||
About Taida.pdf

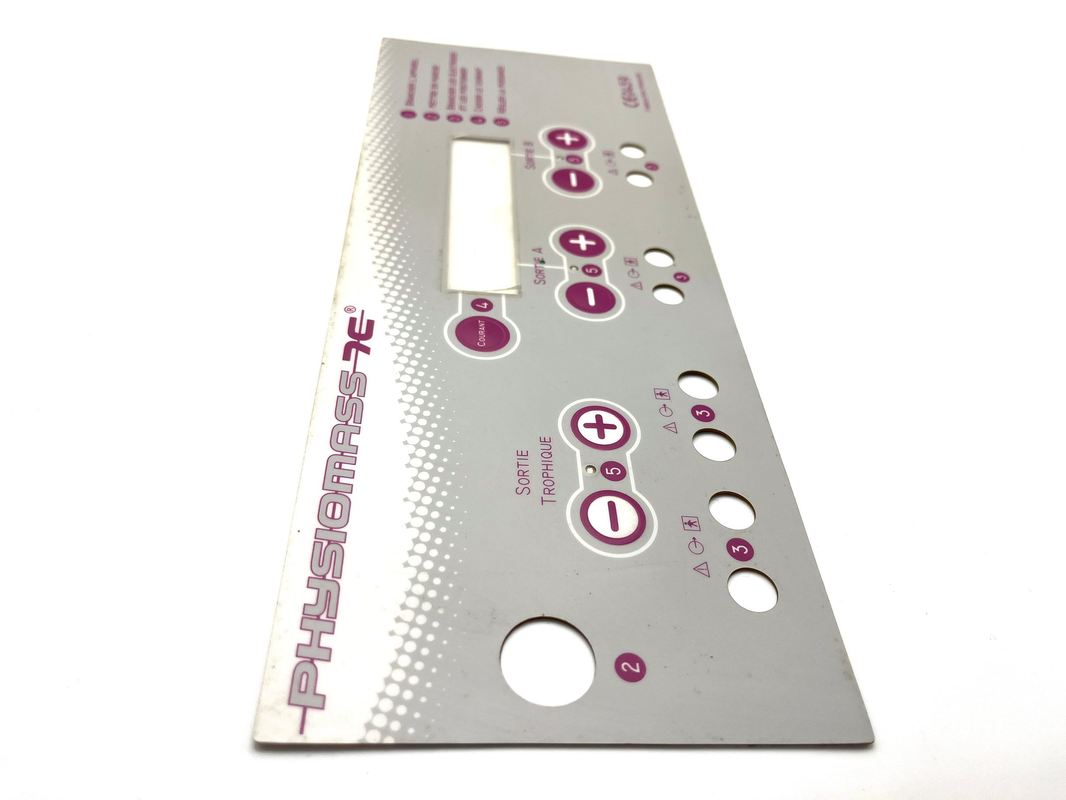

More Product Photos Show:
Forming machine:
Want to Know more details about this product
