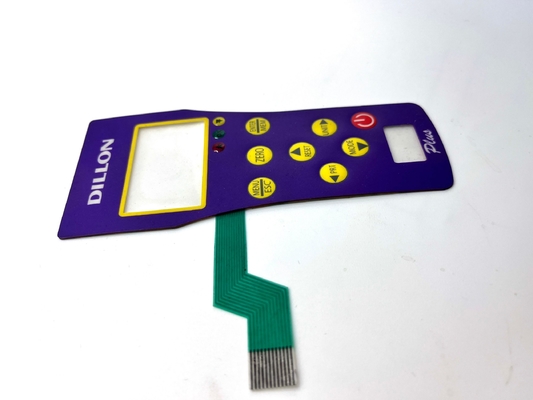

240gm Trip Force 3 Contact Domes Backlit Membrane Switches


240gm Trip Force 3 Contact Domes Backlit Membrane Switches With ROHS Compliant

Features

1. Illumination: The backlighting enhances visibility in low-light conditions, making them ideal for applications such as control panels, medical devices, and household appliances.

2. Design Flexibility: They can be customized in various shapes, sizes, and colors, allowing for branding and aesthetic alignment with the device they control.

3. Durability: Membrane switches are typically resistant to dust, moisture, and chemicals, making them suitable for harsh environments.

4. Tactile Feedback: Some designs can include tactile domes for a click-like response, improving user interaction.

5. Easy to Clean: The smooth surface of membrane switches makes them easy to wipe clean, which is essential for hygiene in medical or food-related applications.

Applications

• Consumer Electronics: Remote controls, appliances, and audio equipment.
• Medical Devices: Equipment requiring clear visibility and ease of use.
• Industrial Controls: Machinery and control panels used in manufacturing.

Considerations

• Power Consumption: The choice of LED or other lighting methods can impact battery life in portable devices.
• Cost: Custom designs and backlighting features can increase production costs compared to standard membrane switches.

The contact domes are typically made of a conductive metal, such as stainless steel or polyester, and are designed to provide a tactile feedback sensation to the user when the key is pressed.

The design and properties of the contact domes can have a significant impact on the overall performance and feel of the membrane switch. Key factors include:

• Dome height and shape: Affects the tactile feedback and actuation force required to register a key press.
• Dome material: Impacts the durability, flexibility, and conductivity of the contact domes.
• Dome spacing: Determines the key travel distance and overall responsiveness of the membrane switch.

By carefully engineering the contact domes, manufacturers can optimize the membrane switch's performance, providing users with a comfortable, reliable, and responsive typing or input experience.




Common membrane keypad structure choose :

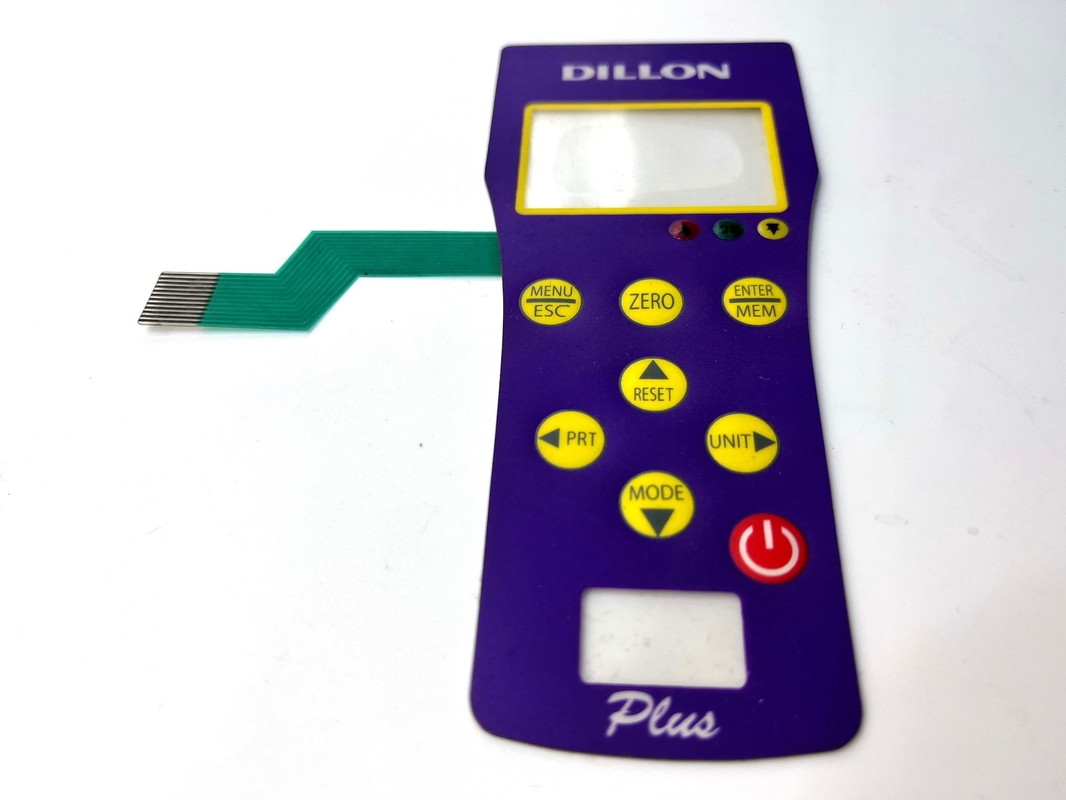

Other photo show :




Mechanical Properties :

1, reliability, service life: > 1 million times

2, closed displacement: 0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm

3, health standard for power: 280g Power

4,Silvermigration: In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC

5, Silver online no oxidation, no impurities

6, Silver width

≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3,

the line gap of <1 / 4 width

7, pin spacing standard 1.00mm

8, lead anti-curvature, 10mm steel rod line pressure roller 80 constantly.



FAQ:

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
