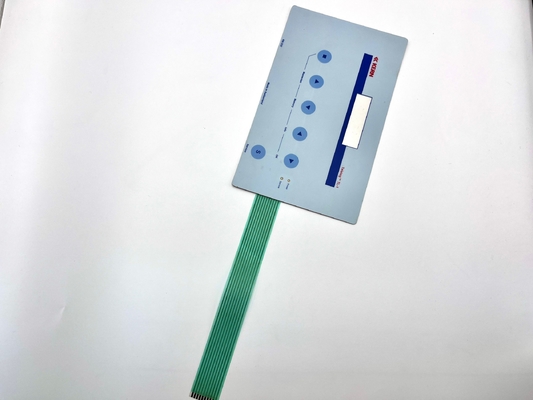

Electronic Customized 4 Membrane Switch Keypads With Tinted LED Embeded
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241114-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 70000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM Or Others | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Dome | Embossing Shape: | Rim Embossing ,Pollow Embosing |
| Circuit Options: | FPC ,silver Plate ,or PCB Board | LED Type: | 0805,or 0603 |
| Highlight: | electronic led membrane keypad,electronic led membrane switch,customized led membrane keypad |
||
Product Description
Electronic Customized 4 Membrane Switch Keypads With Tinted LED Embeded
Applications
- Medical Devices: Found in equipment where hygiene and ease of use are critical.
- Automotive: Used in dashboards and control panels for various functions.
- Consumer Electronics: Used in devices like microwaves, washing machines, and remote controls.
- Industrial Controls: Common in machinery, control panels, and automation systems.
Advantages
- Cost-Effective: Generally less expensive to produce compared to traditional mechanical switches.
- Space Efficiency: Their thin profile allows for compact device designs.
- Ease of Cleaning: The smooth surface can be easily wiped clean, which is beneficial in medical and industrial settings.
Considerations
- Limited Tactile Feedback: While some designs offer tactile feedback, many membrane switches may feel less responsive than mechanical switches.
- Wear and Durability: Over time, the printing on the top layer may fade or wear, especially with frequent use.
Key Features
-
Sealed and Durable:
- Often designed to be moisture and dust-resistant, making them suitable for harsh environments.
-
Layered Construction:
- Top Overlay: A graphic layer with printed symbols or labels, often made from materials like polyester or polycarbonate.
- Spacer Layer: Separates the top and bottom layers, allowing for tactile feedback and preventing accidental activation.
- Circuit Layer: Contains conductive traces that complete the circuit when a button is pressed.
-
Tactile Feedback Options:
- Some designs include raised or domed buttons to provide tactile feedback, enhancing user interaction.
-
Custom Design:
- Membrane switch keypads can be customized in size, shape, and graphics to meet specific application needs.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows or cut out | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure | Non-tactile keys: printed silver spot | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB board | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.3MM ,0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like T4000 or others | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB | ||||||||
Performance Index
|
More photos show :
Why do choose Taida:
• We are the most professional membrane switch Manufacturer in China
• Overall, close and long-term service, No matter for sales and after-sales
• Taida spirit: Be responsible to every customer, Be responsible to ourselves
We are with more than 10 experiences in Membrane switch field
• We are Alibaba Assessed 5 years Gold Supplier.
• 100% QC inspection Before Shippment.
About ShenZhen TaiDa Menbrane switch CO.,LTD
Taida are an OEM professional specializing in designing and manufacturing membrane switch ,graphic overlay and adhesive sticker/labels with with more than 15 years experience in Shenzhen of China which are widely used in industrial,electronics,household appliance,medical equipments.we have more than 500 different customers .and most of our customer come from USA ,EU ,UK ,middle east and other famous country of world wide.Taida can supply different kinds of Membrane switch based on each client's request .
Factory Strength:
Factory Area: Over 2000 Square meters
Employee :＞ 70
Manufacturing
Strong productivity and unified producing process to ensure the fastest delivery time.
QC/QA
20% Employee are QC/QA workers ,quality Guaranteed
Dispatch Department
Power dispatch ability to ensure shipping accuracy and speed
R＆D
Continued quality improvement ,professional Tech support and latest design
From our R＆D department for customers’ demand or samples
