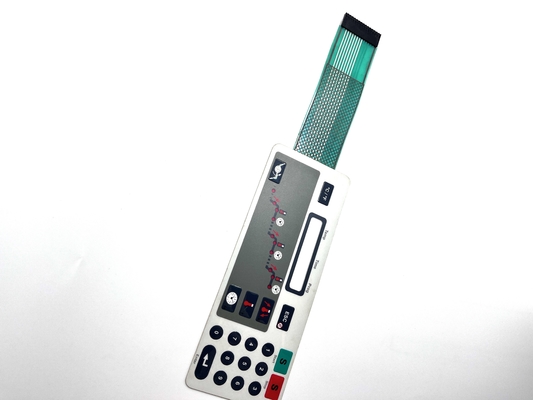

Velvet Texture Momentary Push Button Switch Dome External Adhesive For Wireless
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241106-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 30000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Pitch Of Connect: | 2.54MM Or Others |
|---|---|---|---|
| Button Type: | Poly Dome | LCD Options: | Transparent Window |
| Circuit Options: | Silver Flex Circuit | Storage Temperature: | -40℃ To 85℃ |
| Life Cycle: | 1 Million Times | Led Type: | 0805 Or 0603 |
| Highlight: | Wireless Momentary Push Button Switch,Dome Momentary Push Button Switch,Momentary Push Button Switch Wireless |
||
Product Description
Velvet Texture Momentary Push Button Switch Dome External Adhesive For Wireless
Types of Momentary Push Button Switches
- Normally Closed (NC): This type allows current to flow until the button is pressed, which interrupts the flow.
- Normally Open (NO): This type allows current to flow only when the button is pressed.
Key Features
- Voltage Ratings: Designed to handle various voltages depending on the application.
- Tactile Feedback: Many momentary switches provide a noticeable click or feel when pressed.
- Variety of Styles: Available in different shapes, sizes, and materials (e.g., plastic, metal).
Applications
- Industrial Equipment: Used for emergency stops or control functions.
- Automotive: For features like horn activation or window controls.
-
Consumer Electronics: Such as keyboards and remote controls.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Other photo show :
Electrical Properties:
1, spring time: ≤ 6ms
2, working current: ≤ 100mA
3 Contact resistance: 0.5 ~ 5Ω
4 operating voltage: ≤ 50VDC
5, substrate voltage: 2kDVC
6, insulation ink voltage: 100VDC
7, loop resistance: 60Ω
Our Services :
1 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
2 Customize design is available ,OEM and ODM are welcome
3 Reply your inquiry within 24 working hours
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 Experienced Staffs answer your all question in professional and fluent English
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
