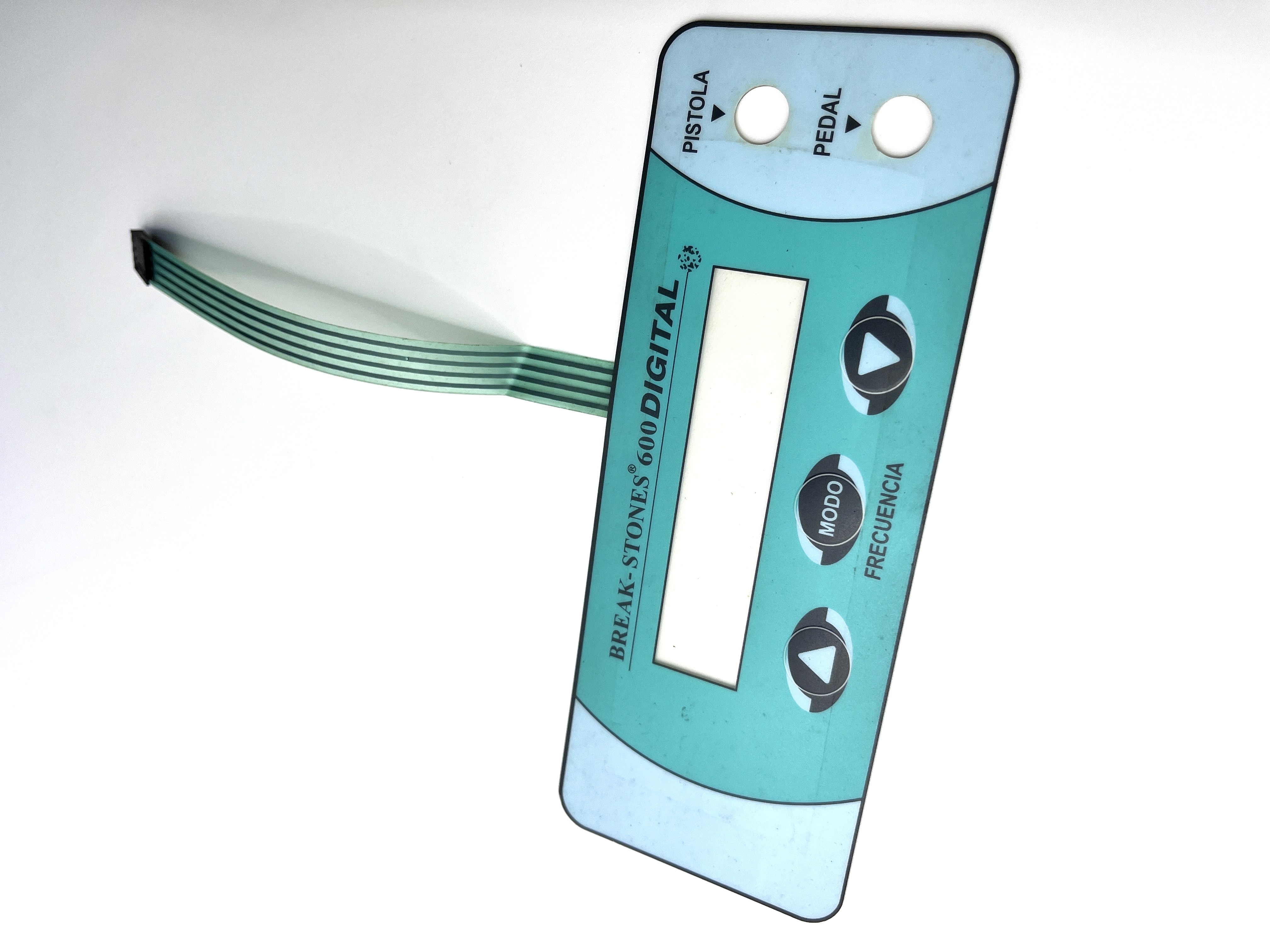

Polyester One Membrane Switch Keypads 3M Adheisve For Application Controls
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | ARVA |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241105-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-6 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM，2.54MM，or 0.5MM | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Poly Dome | Connector Type: | Zif Connector |
| Circuit Options: | Siver Conductive Circuit | Window Option: | Transparent With Glossy |
| Highlight: | Application Controls Membrane Switch Keypads,3M Adheisve Membrane Switch Keypads,One Membrane Switch Keypads |
||
Product Description
Polyester One Membrane Switch Keypads 3M Adheisve For Application Controls
Key Features
-
Construction:
- Layers: Typically composed of a graphic overlay, a spacer layer, and a circuit layer. The graphic overlay displays symbols and text.
- Flexibility: The materials allow for bending and can conform to different shapes of devices.
-
Operation:
- Tactile Feedback: Some designs include tactile domes that provide feedback when a key is pressed.
- Contact Points: When a button is pressed, the top layer makes contact with the circuit layer, completing the circuit.
-
Customization:
- Graphics: Can be custom printed with various colors, fonts, and designs.
- Button Layout: Can be designed to accommodate specific user needs or device functionalities.
-
Durability:
- Resistance: Generally resistant to dust, moisture, and chemicals, making them suitable for harsh environments.
- Longevity: Can withstand millions of presses, depending on the design and materials used.
Applications of One-Push Button Membrane Keypads:
- Remote controls
- Appliance controls (e.g., microwaves, ovens, washing machines)
- Medical devices
- Industrial equipment
- Automotive controls
- Consumer electronics
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
