Screen Printing Tactile Pcb Switch Silver Conductive Circuit With 2.54MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241029-17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith |
|---|---|---|---|
| Adhesive: | 3M Adheisve Or Other Reuqest | Button Type: | Poly Dome Or Metal Dome |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | Circuit Options: | FPC ,silver Plate ,or PCB Board |
| Printing: | Screen Printing | Led Type: | 0603or0805 |
| Storage Temperature: | -40°C To 85°C | Color: | Pantone, RAL CMYK ,RGB Or Samples |
| Highlight: | Screen Printing Tactile Pcb Switch,Silver Conductive Circuit Tactile Pcb Switch,2.54MM Pitch Tactile Pcb Switch |
||
Product Description

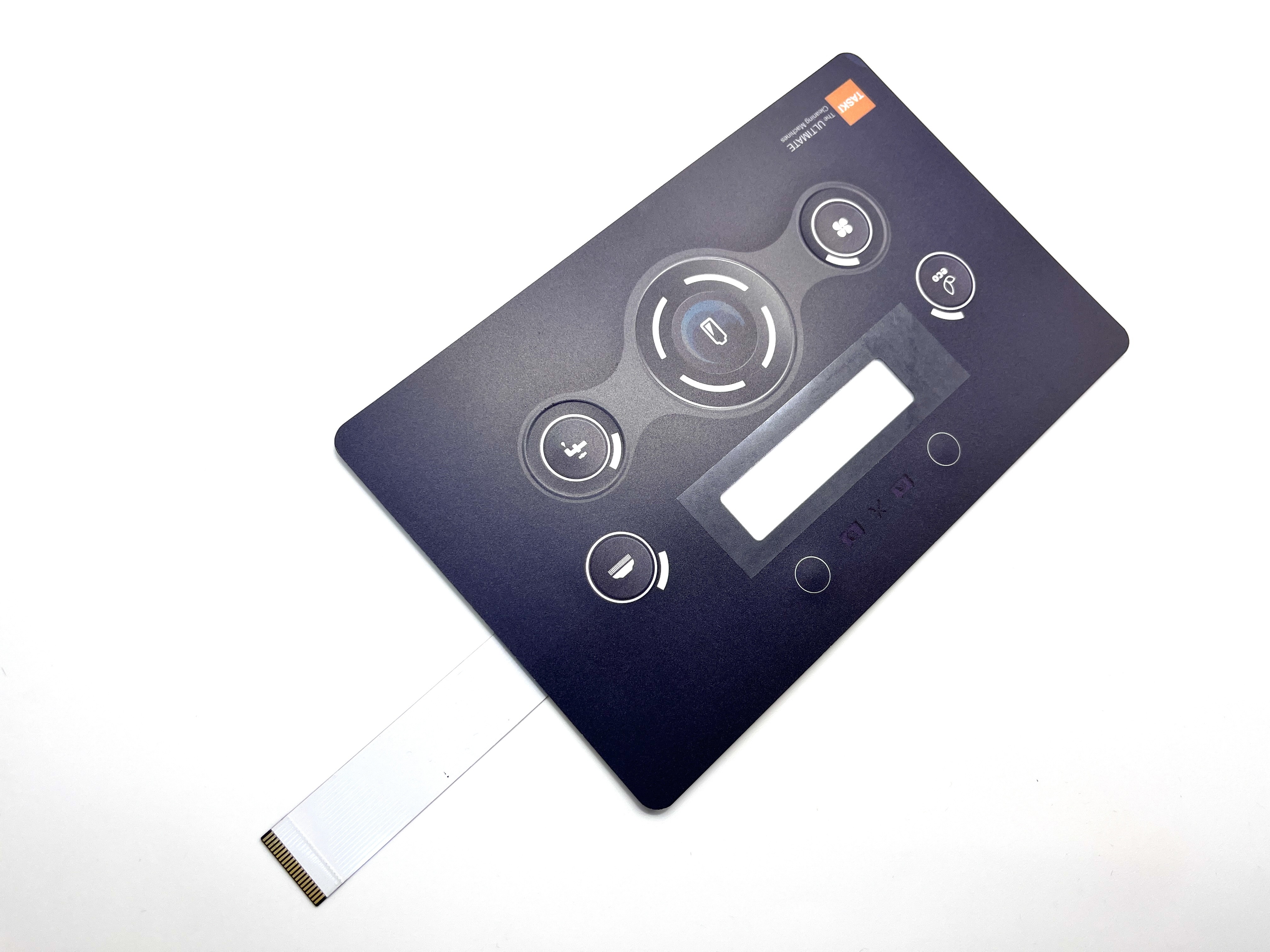

Screen Printing Tactile Pcb Switch Silver Conductive Circuit With 2.54MM Pitch
Key Features of Tactile PCB Switches:
-
Mounting Options: These switches are designed for surface mount or through-hole mounting, depending on the specific design requirements of the PCB.
-
Size Variability: Available in various sizes and shapes to accommodate different design needs, from compact devices to larger, more complex systems.
-
Tactile Feedback: Users can feel a distinct response when the switch is pressed, making it easier to use in applications where confirmation of actuation is important.
-
Applications: Commonly used in consumer electronics, medical devices, automotive controls, and any application needing user input.
-
Durability: Many tactile switches are rated for a significant number of cycles (often in the hundreds of thousands), ensuring long-term reliability.
Considerations When Choosing Tactile PCB Switches:
- Travel Distance: The distance the switch must be pressed to activate can affect user experience.
- Environmental Ratings: Some switches are designed to be water-resistant or dustproof.
- Actuation Force: The amount of pressure required to activate the switch can vary, so choose one that suits your needs.
- Electrical Ratings: Ensure the switch can handle the voltage and current of your application.
Specification:
1)Material (for front or face overlay)
Polyester:
1.Highly versatile for embossing
2.Highly resistant to chemicals
3.Better durability
4.For internal and external use, UV resistance
Polycarbonate:
1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)
2. cost-effective in price
3.For internal and external use
2) Embossing
Rim embossing/pillow embossing/dimple embossing
Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.
3)Windows(for display function)
1. print different colors windows, As transparent grey/Red/green window for display
2. Clear/Transparent window for LCD display
2. Matt/semi-transparent window for LED
4)Keys/buttons
Tactile keys---with metal dome or poly dome
Non-tactile--silver printing dots with flat key
5) Embeded LEDs
Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.
LED colors: white, yellow, orange, green, red, or double colors LED.
6)Cable
It is an extension of the printed circuit and is used to communicate with your device.
7)Types of connector
1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector
8) EMI / RFI / ESD Shielding
use an aluminum foil shielding / a clear ITO electrical conductive polyester
9)Adhesive
mostly used are 3M-double-side glue
10)Backplate-
in aluminum, polycarbonate, acrylic, PCB
Product index:
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
