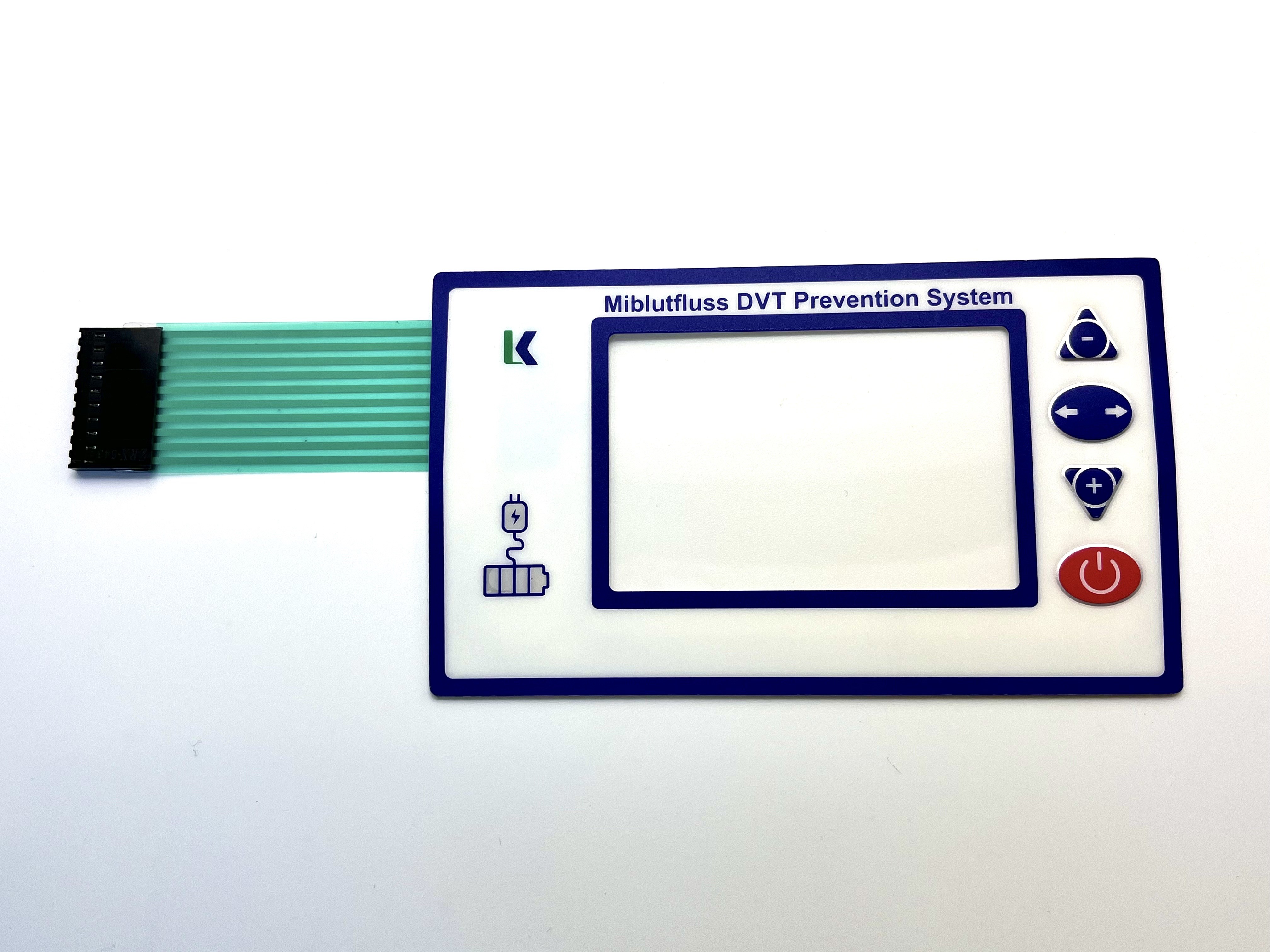

Screen Printing Medical Membrane Switch Supplier With Transparent LCD Window
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH ,UL |
| Model Number: | 240705-204 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags ,Custom design Carton with foam |
| Delivery Time: | 5-7 days for sample lead time ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 13000+pcs+a month |
|
Detail Information |
|||
| Color: | Pantone ,RAL Or CMYK Or Samples | Button Type: | Embossing Metal Dome With Good Tactile |
|---|---|---|---|
| Application: | Miblutfiuss DVT Prevention System | Material: | Polyester Or Polycarbonate |
| Circuit Thickness: | 0.125mm PET | Contact Resistance: | ≤10Ω |
| Life Cycle: | 1 Million Actuations | Size: | Custom Design Based On Client Drawing Or Request |
| PN: | LED Membrane Switch | Pitch Of Connector Pitch: | 2.54MM |
| Highlight: | LCD Membrane Switch,Screen Printing Membrane Switch,Medical Membrane Switch Supplier |
||
Product Description
Screen Printing Medical Membrane Switch Supplier With Transparent LCD Window
Key Features of Medical Membrane Switches
Material Quality:
- Use medical-grade materials (e.g., polyester or polycarbonate) that comply with health regulations.
- Ensure the materials are resistant to chemicals and easy to clean.
Transparent LCD Window:
- Incorporate a clear window for LCD displays, ensuring high visibility and durability.
- Make sure the window is treated for anti-glare and scratch resistance.
Screen Printing:
- Utilize high-quality screen printing techniques for clear, durable graphics.
- Ensure printing is done with inks that are safe and compliant with medical standards.
Tactile Feedback:
- Include tactile feedback for user interaction, using domes or other mechanisms that meet user comfort and accessibility standards.
Customization:
- Offer options for custom designs, including size, shape, and graphics to meet specific medical device requirements.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Performance Index:
|
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
