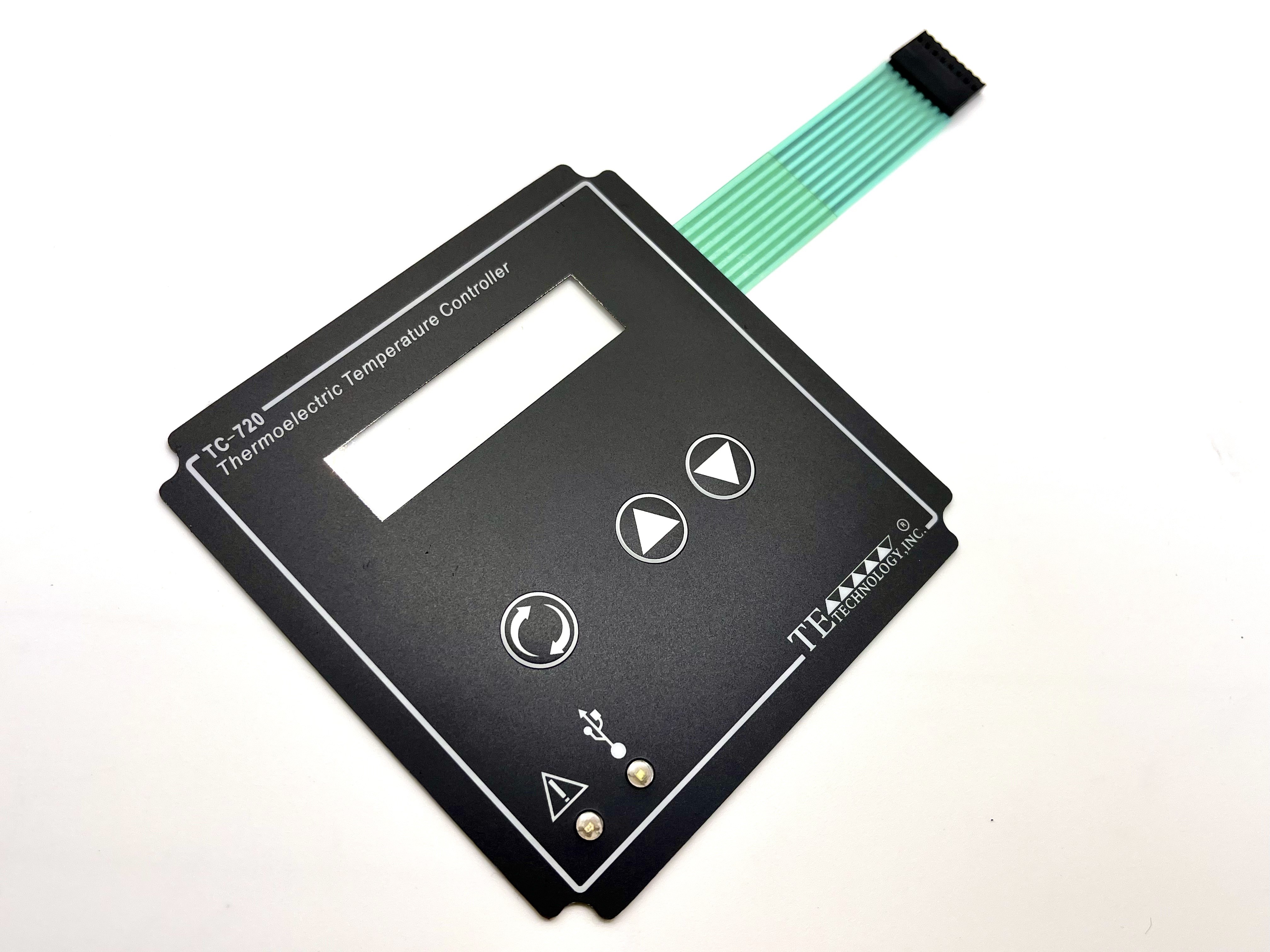

Custom Design LED / SMD Light Membrane Control Panel For Automotive Dashboards
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 240705-210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 21000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM ,1.25MM ,0.5MM | Adhesive: | 3M Adheisve Or Others |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit |
| Surface Finish: | Velvet Texture Or Glossy | Connector Brand: | ZIF Connector Or Female Connector |
| LED Color: | Green | LED Type: | 0805 |
| Forward Voltage: | 3V | Contact Area Aspect: | Upside Or Downside |
| Highlight: | Automotive Dashboards LED Membrane Control Panel,Custom Design LED Membrane Control Panel,SMD LED Membrane Control Panel |
||
Product Description
Custom Design LED/SMD Light Membrane Control Panel For Automotive Dashboards.
Key Features
- LED/SMD Integration: Incorporates surface-mounted LEDs (SMD) to provide bright, efficient lighting for indicators, buttons, and displays.
- Custom Design: Tailored to specific automotive requirements, including graphics, layouts, and functional controls.
- Durable Materials: Usually made from high-quality materials such as polyester or polycarbonate for resilience against wear, moisture, and temperature variations.
Advantages
- Enhanced Visibility: LED lighting ensures excellent visibility of controls, even in low-light conditions, improving driver safety and usability.
- Aesthetic Appeal: Custom graphics and lighting effects can enhance the overall look of the dashboard, aligning with the vehicle’s design theme.
- User-Friendly Interface: Tactile feedback and well-placed controls improve user interaction, allowing for intuitive operation while driving.
Applications
- Automotive Dashboards: Ideal for use in cars, trucks, and other vehicles, providing controls for climate, navigation, and entertainment systems.
- Instrument Clusters: Can be integrated into instrument panels for speedometers, tachometers, and other essential gauges.
- Specialty Vehicles: Useful in custom builds, such as racing cars or off-road vehicles, where unique control requirements may exist.
Considerations
- Environmental Resistance: Ensure the design can withstand automotive environments, including exposure to vibrations, moisture, and temperature fluctuations.
- Electrical Specifications: Verify compatibility with vehicle electrical systems, including voltage and current ratings.
- Design Compliance: Adhere to industry standards for automotive components, ensuring safety and reliability.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions,transparent ,tinted or other request | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Electrical Properties:
1, operating voltage: ≤ 50VDC
2, working current: ≤ 100mA
3 Contact resistance: 0.5 ~ 5Ω
4 Insulation resistance: ≥ 100MΩ (100VDC)
5, substrate voltage: 2kDVC
6, spring time: ≤ 6ms
7, loop resistance: 60Ω
8, insulation ink voltage: 100VDC
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
