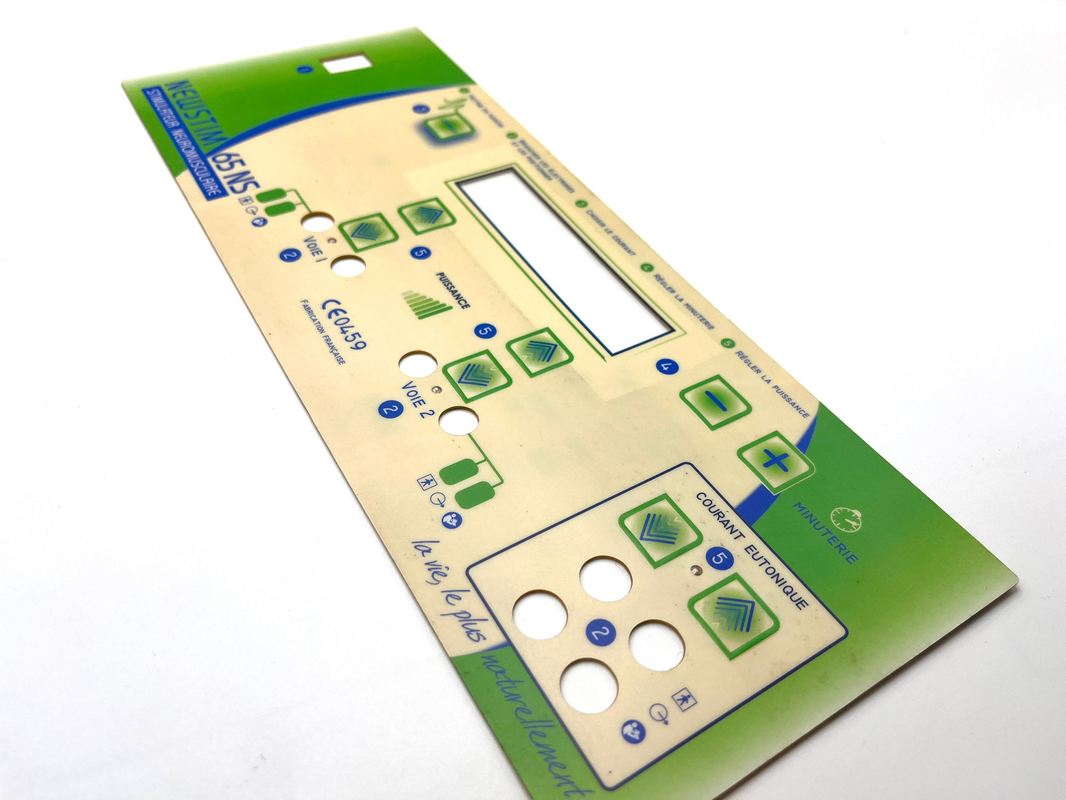

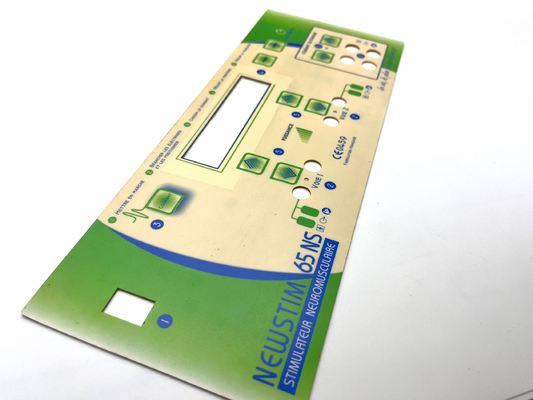

Customizable And Hygienic Single Medical Membrane Switches For Control Panels And Diagnostic Equipment
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | GC Technology |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251103-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 13000 +pcs +a Month |
|
Detail Information |
|||
| Color: | Pantone, RAL CMYK ,RGB Or Samples | Pitch Of Connect: | 1.0MM ,1.25MM，2.54MM，or 0.5MM |
|---|---|---|---|
| Adhesive: | 3M467 T4000 Adheisve Or Other | Surface Material: | Polyester Or Polycarbonate Or Others |
| Led Type: | 0603 0805 Or Other | Thickness: | Customized |
| Printing Method: | Screen Printing | Application: | Medical Device |
Product Description
Customizable And Hygienic Single Medical Membrane Switches For Control Panels And Diagnostic Equipment
It sounds like you're interested in customizable and hygienic single medical membrane switches for use in control panels and diagnostic equipment. Here are some key points to consider:
Features of Medical Membrane Switches
Customizability:
- Design Options: Membrane switches can be tailored in size, shape, and layout to fit specific applications.
- Graphics and Labels: Custom printing options for graphics, icons, and labels enhance usability and branding.
Hygienic Design:
- Material Selection: Use of medical-grade materials that are resistant to bacteria and easy to clean.
- Sealing: Fully sealed designs prevent moisture and contaminants from entering, ensuring hygiene in medical environments.
Durability:
- Long Lifespan: Designed to withstand frequent use and harsh cleaning agents.
- Resistance to Wear: Scratch-resistant surfaces maintain clarity and functionality over time.
Functionality:
- Tactile Feedback: Options for tactile or silent operation depending on user preference and application requirements.
- Integration: Easily integrates with electronic circuits and systems for seamless operation.
Compliance:
- Ensure the switches meet relevant medical standards and regulations, such as IEC 60601 for medical electrical equipment.
Applications
- Control Panels: Ideal for equipment like infusion pumps, diagnostic machines, and patient monitoring systems.
- Diagnostic Equipment: Used in devices requiring user interaction, providing a user-friendly interface.
Considerations for Implementation
- User Experience: Focus on ergonomics and ease of use for medical staff and patients.
- Testing and Validation: Conduct thorough testing to ensure reliability in medical environments.
Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Performance Index
|
Other photo show :
Assembly woekshop:
