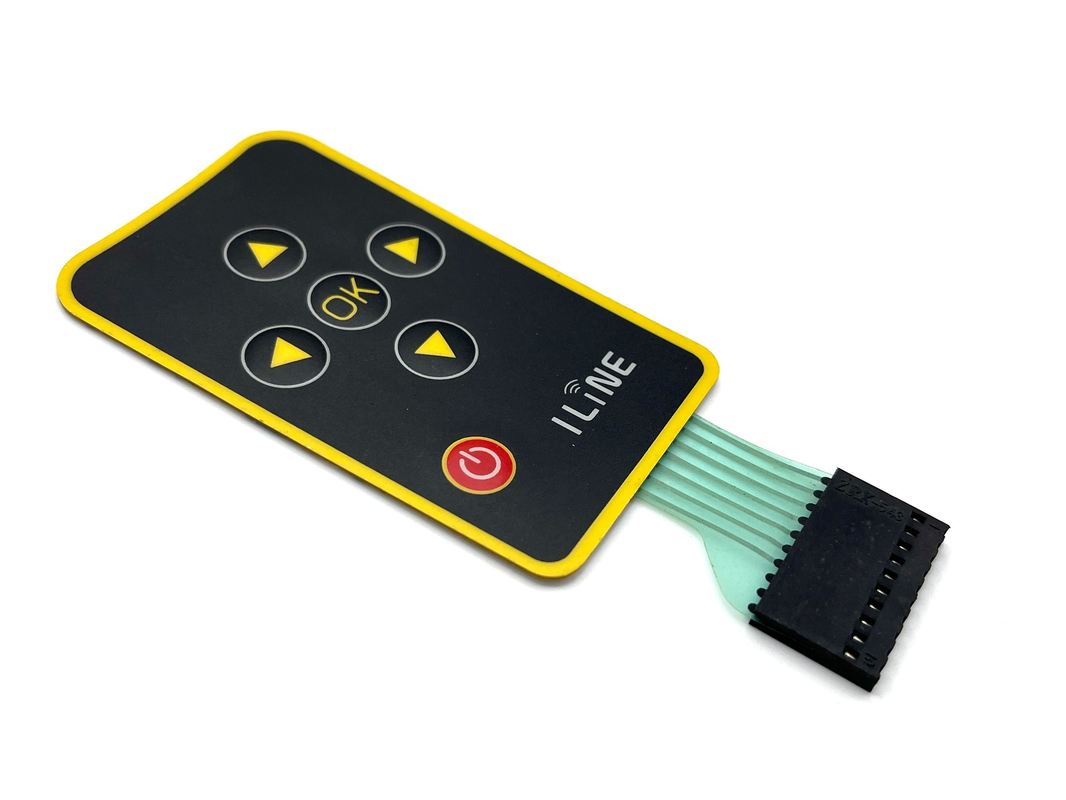

Medical Membrane Switch A Hygienic and Durable Input Device for Improved Efficiency
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | GC Technology |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251027-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Color: | Pantone | Adhesive: | 3M467 Sony Adheisve Or Others |
|---|---|---|---|
| Zif Connector Pitch: | 2.54MM | Storage Temperature: | -20-60℃ |
| Life Cycle: | 1 Million Actuations | Circuit Thickness: | 0.125mm PET |
| Size: | Customized | ||
| Highlight: | hygienic medical membrane switch,durable medical membrane switch,efficient medical input device |
||
Product Description
Medical Membrane Switch A Hygienic and Durable Input Device for Improved Efficiency
Key Features
-
Hygienic Design:
- Sealed Surfaces: Prevents the accumulation of dirt and bacteria, facilitating easy cleaning and hygiene compliance.
- Materials: Often made from medical-grade materials that are resistant to disinfectants and harsh cleaning agents.
-
Durability:
- Long Lifespan: Built to withstand frequent use and harsh conditions, ensuring reliable performance over time.
- Chemical Resistance: Resists damage from common medical disinfectants and cleaning solutions.
-
User-Friendly:
- Tactile Feedback: Provides a clear response for the user, enhancing usability, especially in critical situations.
- Customizable Layout: Allows for tailored configurations, including specific symbols or labels relevant to medical functions.
-
Versatile Applications:
- Device Integration: Can be integrated into various medical devices, including monitors, infusion pumps, and diagnostic equipment.
- Backlighting Options: LED backlighting can improve visibility in low-light conditions.
-
Touch Sensitivity:
- Responsive Operation: Offers quick and reliable activation to support fast-paced medical environments.
Benefits
- Improved Efficiency: Streamlined operation reduces the time needed for device interaction, enhancing workflow in medical settings.
- Enhanced Safety: The hygienic design minimizes the risk of cross-contamination, promoting patient safety.
- Cost-Effective: Reduces maintenance and replacement costs due to its durability and resistance to wear.
Product Descriptions :
| overlay materials | PET - for better emboss effect , PC-- costing saving |
| surface finish | gloss , matte or velvet |
| adhesive | Most sed are 3M467MP, all type of glue are offered |
| thickness | between 0.9mm-2.0mm |
| windows |
Optional : color windows or transparency window without color |
| cutouts | optional |
| protective film | offered , needed if there is a window |
| sample | 5 pcs sample offered |
| lead time |
samples: 5 days as the artwork confirmed mass product : 7 days as the sample confirmed |
| advantages |
1.more than 6 years of manufacturer 2.strict quality controls 3.astentic outlook for the membrane panel and graphic overlay |
| payment | TT. LC . Western Union |
| Actuation force | 1. Flat type 60 - 300g (2 - 10oz) 2. Tactile type——150 - 400g (6 - 14oz.) |
| Life expectancy | 1. Flat type——5,000,000 closures or more 2. Tactile type——1,000,000 closures or more |
| embossing | rim embossing , pillowing embossing and dome embossing |
| logos | OEM |
Product Index:
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
More photos show :
How to order
• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote
• Confirm order details and approved our artwork before sample ,confirm our sample before mass goods and Order PI will be sent
• we will send our artwork for your confirm within 3 days before sample making ,and sample lead time is 4-5 business days As usual .
mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity
