Customizable graphic overlays are thin, durable films or sheets applied to a product's surface for branding, providing instructions, or indicating functions [1][2]. They serve as the interface between users and devices, making the technology more approachable and user-friendly [3].

Here's a breakdown of their key aspects:

1. Functions and Benefits:

• Branding: Graphic overlays enhance brand recognition by displaying logos and brand elements [4][5]. They create a memorable first impression and help customers easily identify your products [1][6].
• User Interface: They offer clear instructions, indicate control functions, and improve the user experience [1][4].
• Protection: Overlays protect underlying components (switches, screens) from dust, moisture, chemicals, UV radiation, and general wear and tear, extending the product's lifespan [4][6].
• Safety Compliance: They can display warnings and safety information to meet industry regulations [1].

2. Materials:

• Polycarbonate: Known for its impact resistance, optical clarity (for displays and backlighting), scratch resistance, and dimensional stability [7][8]. Suitable for both indoor and outdoor use [8].
• Polyester (PET): Offers durability and chemical resistance, making it ideal for harsh environments. It can be surface or reverse-printed for added protection and is often used as the top layer in membrane switches due to its flexibility [1][7].
• Vinyl & Acrylic: These are also used in graphic overlays [1].

3. Printing Techniques:

• Digital Printing: Provides design flexibility, vibrant color clarity, and eliminates the need for screens or plates, reducing setup costs and lead times. It allows for personalization, serialization, and high-resolution graphics [1][9].
• Silkscreen Printing: Delivers high-quality, precise graphics with intricate details and vibrant colors [1][7].

4. Customization Options:

• Size and Shape: Overlays can be manufactured in various shapes and sizes [10].
• Texture: Selective texturing (gloss and matte) can be applied on the same overlay [1][9].
• Die Cuts and Cutouts: Custom cuts can be made for accommodating plugs, connectors, or buttons [9].
• Windows: Clear or tinted windows can be incorporated [1]. Transparent colors can accentuate branding [9].
• LED Windows: Knockout printing can be used for surface-mount LED indicators [9].
• Embossing/Debossing: These techniques add tactile elements and visual appeal [1][9].
• Backlighting: Illumination from behind can make certain functions more visible, especially in low-light conditions [5][10].
• Dead Front: Graphics remain hidden until illuminated from behind [5][9].
• Adhesive: Selective or die-cut adhesive can be applied [1][9].

5. Applications:

• Consumer electronics [1][3]
• Medical devices [1][3]
• Control panels [1][3]
• Automotive dashboards [10]
• Appliances (commercial and residential) [10]
• Machinery control panels [10]
• HVAC equipment [10]
• Gas station pumps [10]
• Security equipment [3]
• Laboratory equipment [3]

6. Key Considerations:

• Operating Environment: Consider the environmental conditions (temperature, exposure to chemicals, UV light, etc.) when selecting materials and design [5][8].
• Durability: Choose materials and printing methods that can withstand wear and tear [1][4].
• User Experience: Design the overlay to be clear, intuitive, and easy to use [2][4].
• Brand Consistency: Incorporate your brand elements to create a consistent brand identity [1][4].

7. Graphic Overlay Manufacturers:

• Dyna-Graphics [10]
• Hallmark Nameplate [8][11]
• Label-Aid Systems [1][9]
• MFG Labeling, LLC [1]
• McLoone Product Identification [1]
• JN White [1][12]
• ALMAX [12]
• CSI Keyboards, Inc [12]
• Telamco, Inc [12]
• Cole Graphic Solutions [12]
• Design Mark [13]

 Specification:

1.Overlay Materials: The most commonly used materials are polyester(PET) and polycarbonate(PC)/Lexan

a, polyester (PET )----mostly used ,having advantage in life cycles: 1,000,000 cycles

b, polycarbonate (PC)-----pricing advantages, life cycles:40,000 cycles

2. Rear Adhesive: 3M 467MP, 3M 468MP, 3M9448Mp,Lohmann ,Sony adhesive etc

3. Matching color: Pantone and RAL color matching system.

4 .Surface finish:Glossy, semi-glossy or matt

5. Key effect :Non-tactile,poly dome ,

tactile feedback: ----metal dome inside for crisp tactile feedback

----polyester dome with emboss

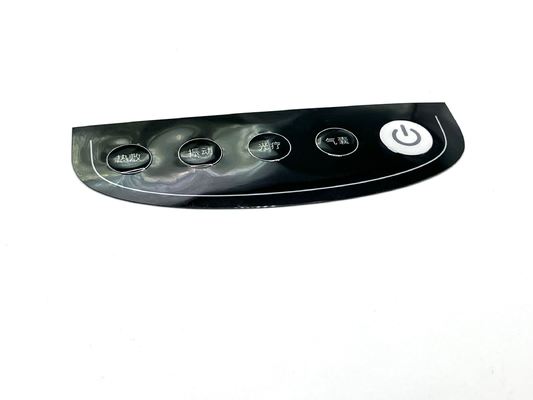

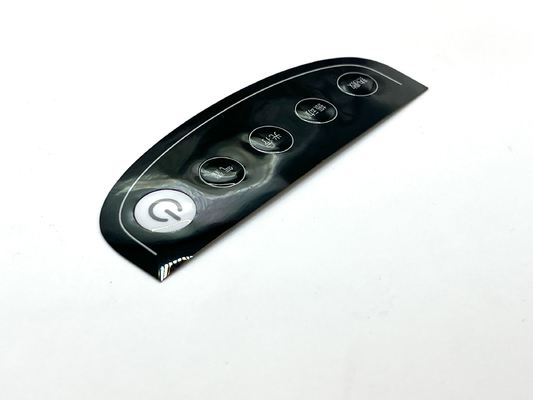

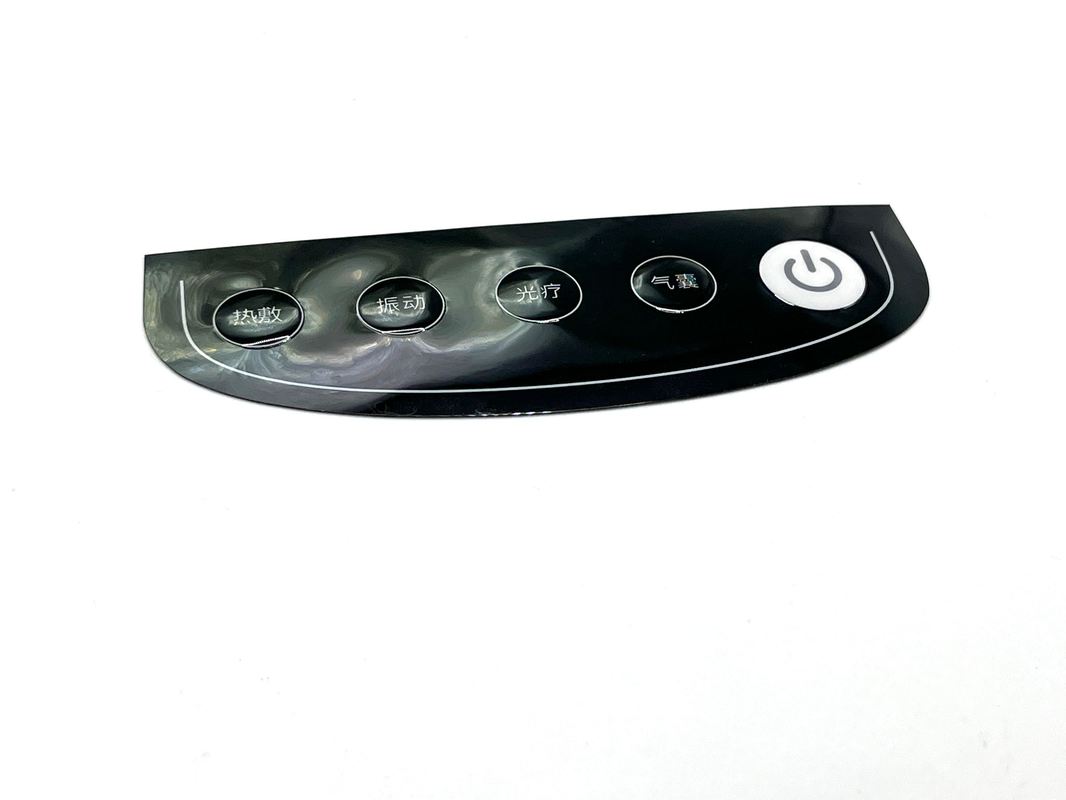

 More photos show :
