Polyester Medical Membrane Switch With Blind Spot Button For Home Automation Systems High Durability And Versatility
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251021-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 14000 +pcs +a Month |
|
Detail Information |
|||
| Color: | Pantone, RAL CMYK ,RGB Or Samples | Pitch Of Connect: | 1.0MM ,1.25MM，2.54MM，or 0.5MM |
|---|---|---|---|
| Adhesive: | 3M9448A 3M467 Adheisve Or Others | Shpe: | Custom Design |
| Life Expectancy: | 1 Million Actuations | Led Color: | 0603 0805 Or Other |
| Actuation Time: | ≤10ms | Appition: | Healthcare Devices |
Product Description
Polyester Medical Membrane Switch With Blind Spot Button For Home Automation Systems High Durability And Versatility
The query concerns a polyester medical membrane switch with a blind spot button for home automation systems, emphasizing high durability and versatility. Here's a breakdown of the key aspects:
1. Material: Polyester
- Polyester (PET) is a common material for membrane switches due to its durability, flexibility, and resistance to chemicals and environmental conditions [1][2].
- It can withstand over 1,000,000 actuations without showing signs of wear [3].
- Polyester is suitable for both graphic overlays and circuit layers in membrane switches [1][4]. It works well with the high temperatures required for conductive printing [4].
- Polyester is more durable than polycarbonate, especially when embossing is involved [3][4]. Embossing can cause cracking and reduce the life of polycarbonate [4].
2. Application: Medical Equipment
- Membrane switches are used in a variety of medical equipment due to their reliability, cleanability, and quiet operation [5][6].
- Examples include patient monitors, infusion pumps, and IVD analyzers [5].
- The sealed design of membrane switches protects them from dust, moisture, and chemicals, which is important in medical settings [2][7].
3. Feature: Blind Spot Button
- A blind spot button is a button that is not visually apparent on the surface of the keypad [8].
- This creates a smooth, minimalist appearance [8].
- The keypad uses a flexible membrane material with conductive traces printed on it [8].
- When the button area is pressed, the membrane makes contact with the underlying circuit, registering the input [8].
- Blind spot button membrane keypads are used in home automation systems, automotive controls and appliances [8].
4. Application: Home Automation Systems
- Membrane switches are popular in home automation because of their low profile, durability, and customizability [9].
- They are thin and take up very little space, which is ideal for home automation systems where space is often limited [9].
- Membrane switches can be made in a variety of shapes, sizes, and colors, and can be printed with custom graphics or labels [9].
5. Durability and Versatility
- Membrane switches are known for their ability to withstand harsh conditions [10][11].
- They have a sealed top layer that protects against moisture [7].
- They can be designed to resist chemicals, UV exposure, and extreme temperatures [4][12].
- The switches can last for over 1 million actuations [2][12]. Some can even reach 5 million, 8 million, or 10 million actuations [13].
- The use of high-quality materials and proper design can maximize the service life of membrane switches [13].
Product spec :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||

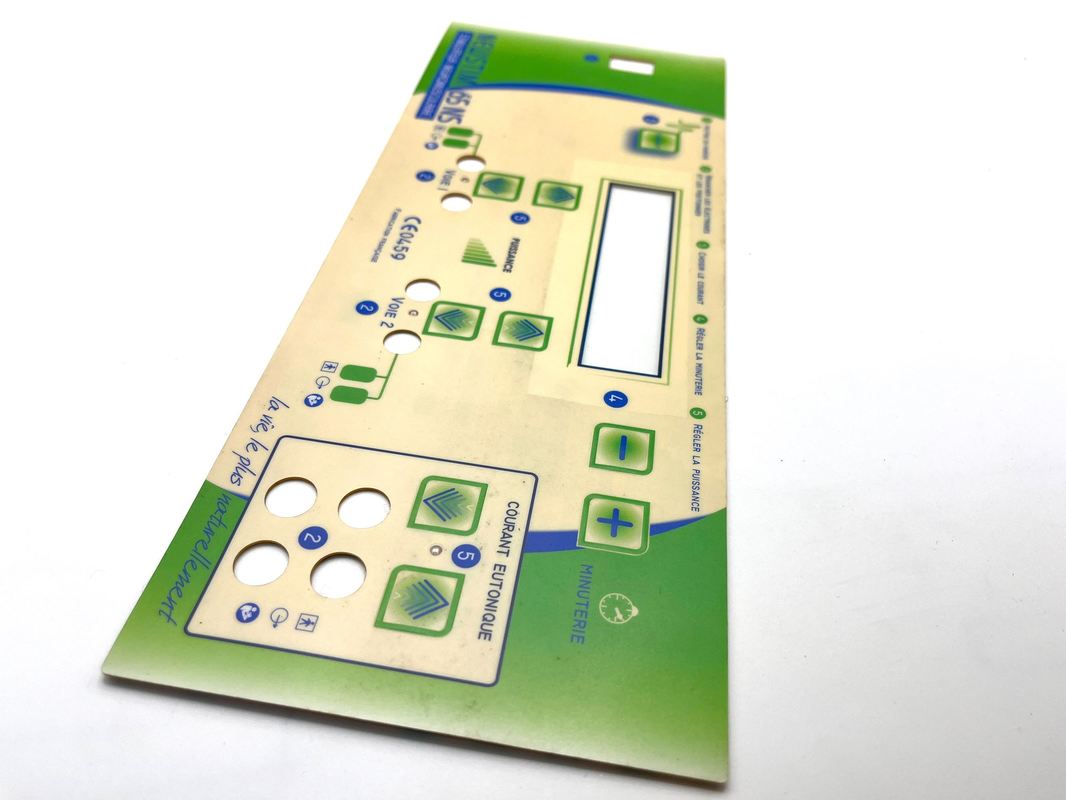

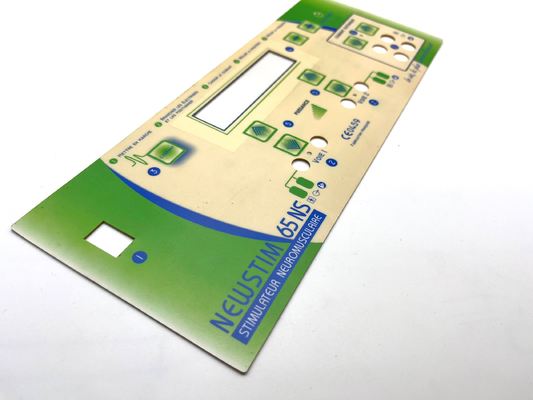

Other photos show :
FAQ:
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.
Q2. What is your terms of payment?
A:T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
