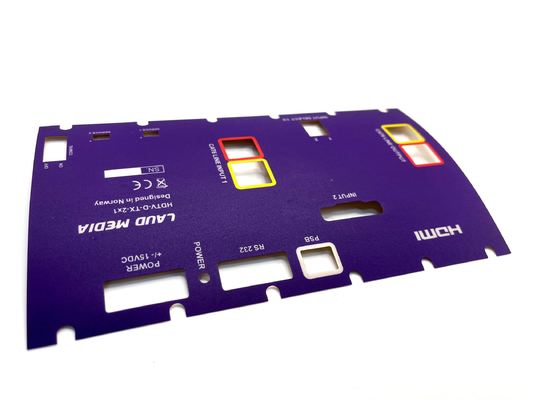

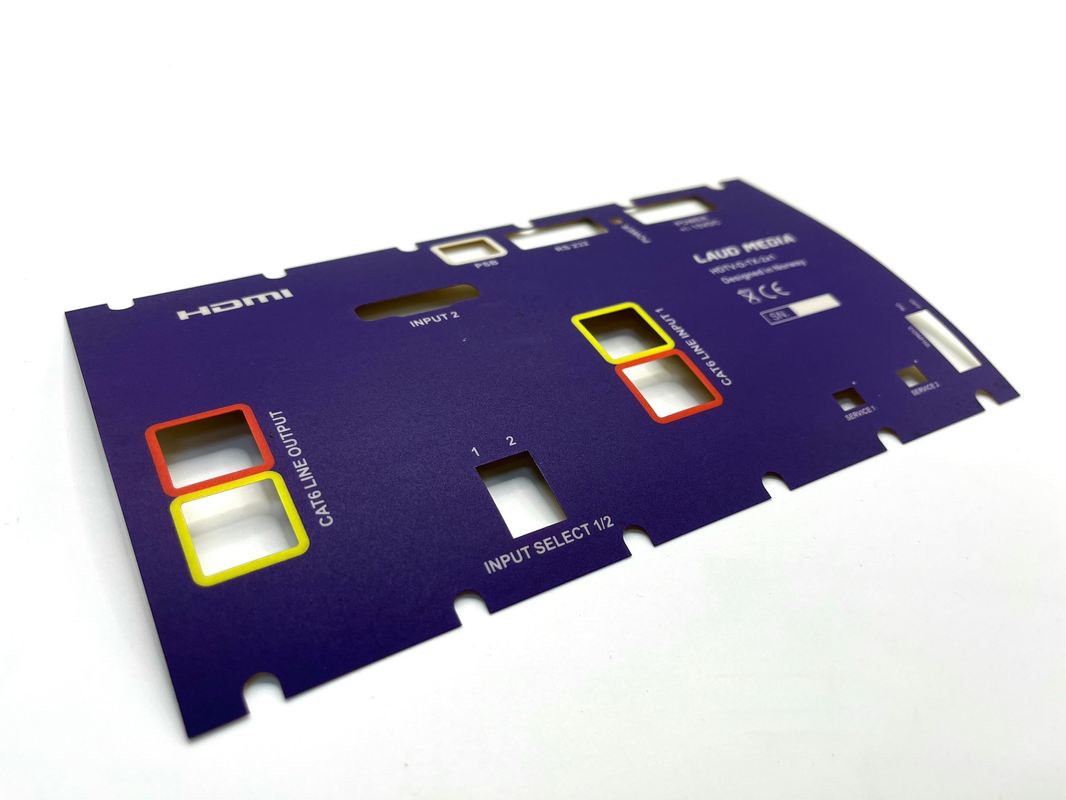

Polycarbonate Graphic Overlay Customizable Durable And Impact Resistant With Tactile Features
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251020-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 73000 +pcs +a Month |
|
Detail Information |
|||
| Color: | Pantone , RAL ,CMYK, Or Samples | Adhesive: | 3M467 T4000 Adheisve Or Other Reuqest |
|---|---|---|---|
| Appiliation: | Industrial Device | Embossing: | Raised Or Domed Graphics |
| Contact Type: | Touch Keys | Temperature Range: | -40°C To 85°C |
| Life Span: | >100000 Times | Printing Type: | Screen Printing |
Product Description
Polycarbonate Graphic Overlay Customizable Durable And Impact Resistant With Tactile Features
It sounds like you're looking for information or specifications regarding customizable polycarbonate graphic overlays. Here’s a brief overview:
Polycarbonate Graphic Overlay
Key Features:
-
Customizable Design:
- Can be tailored to specific dimensions, graphics, and tactile features.
- Options for printing methods, including digital printing and screen printing.
-
Durability:
- Made from high-impact polycarbonate material, ensuring long-lasting performance.
- Resistant to scratches, chemicals, and UV exposure.
-
Impact Resistance:
- Excellent strength-to-weight ratio, making it ideal for demanding environments.
- Protects underlying components from physical damage.
-
Tactile Features:
- Possibility to include raised buttons or textures for enhanced user interaction.
- Custom tactile feedback can improve usability in applications like control panels.
-
Applications:
- Commonly used in electronics, machinery, and consumer products.
- Suitable for both indoor and outdoor settings.
Considerations
- Thickness: Choose an appropriate thickness based on application requirements.
- Adhesive Options: Consider the type of adhesive for mounting, if necessary.
- Finishing: Matte or gloss finishes can affect the appearance and functionality.
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use |
1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use 4 many Lexan label choose |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch Poly domes ,Poly dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LED Window ---Transparent or Tinted LED window ,color is custom design | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
