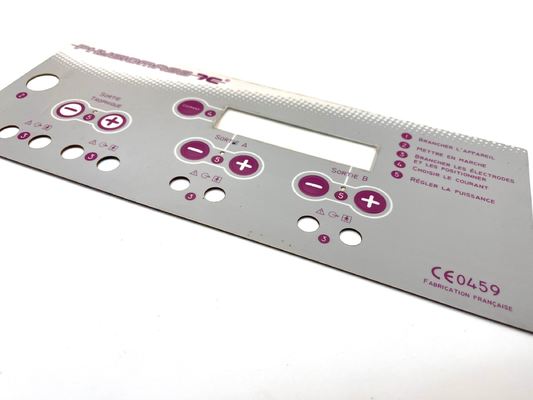

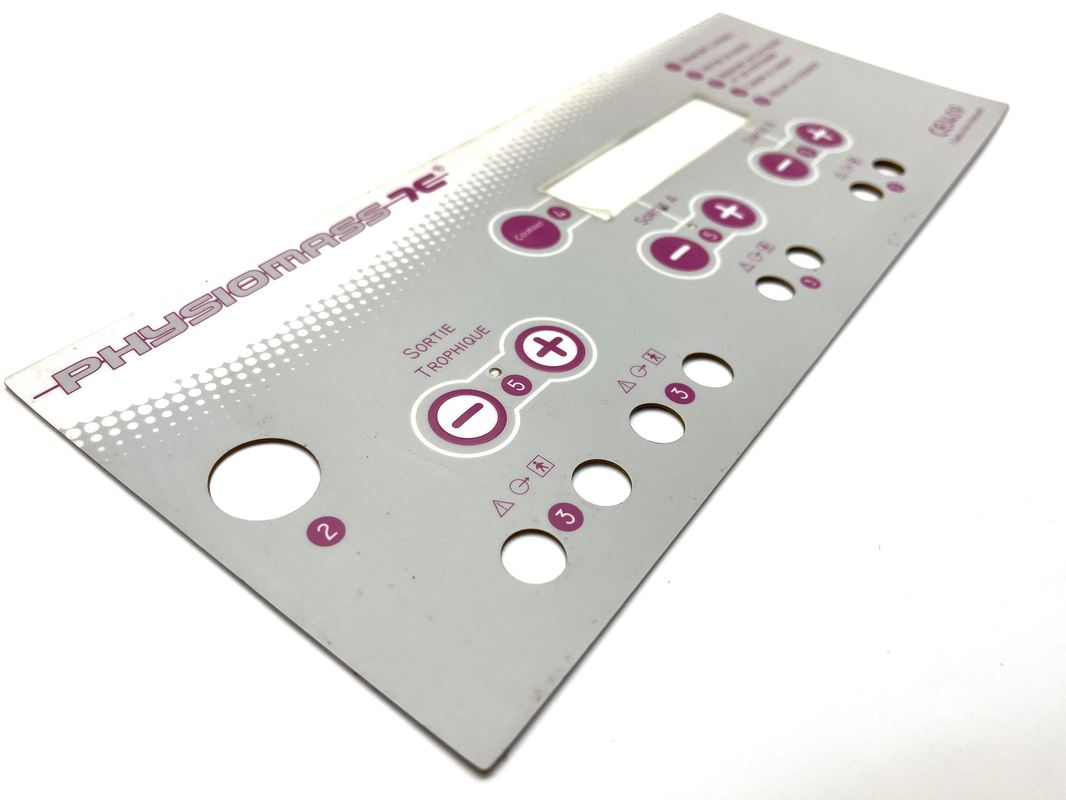

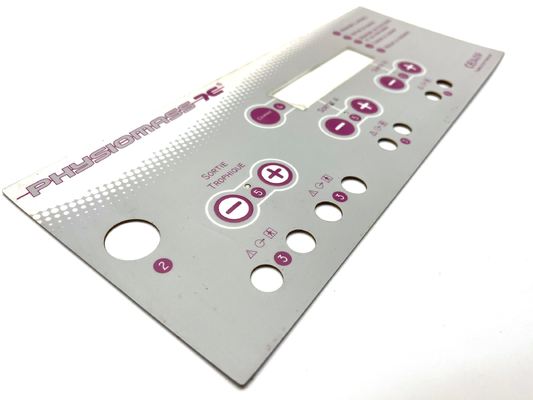

Poly Dome PET Circuit Industrial Membrane Switches Power Saving With Silver Paste

Poly Dome PET Circuit Industrial Membrane Switches Power Saving With Silver Paste


1. Key Features and Advantages:

• Durability: They are built to endure exposure to dust, moisture, extreme temperatures, chemicals, and mechanical stress, ensuring reliable operation [1][3].
• Sealed Construction: Industrial membrane switches often feature sealed perimeters and can be engineered to meet IP65, IP67, or even higher ingress protection ratings, making them dust-tight, splash-proof, or waterproof [3][4]. This prevents contaminants from entering the circuitry [3].
• Resistance: Materials like polyester (PET) or polycarbonate (PC) overlays are UV-stable, resistant to extreme temperatures (typically -40°C to +70°C or more), oils, chemicals, alcohol, and disinfectants [3].
• Customization: They can be customized to meet specific requirements, with options for clear labels and easy-to-use buttons, enhancing operator efficiency and reducing errors [1][2].
• Low Profile: They have a thin profile, which is beneficial for integration into various control panels and equipment [4][5].
• Easy to Clean: The sealed and flat surface is easy to clean and sterilize [5].

2. Applications:

• Industrial Control Panels: They are used in control panels for machinery and equipment in manufacturing, automation, and energy industries [1][6].
• Machinery Controls: They provide a durable and dependable solution for controlling industrial machinery, ensuring uninterrupted production and minimizing downtime [1].
• Automation Systems: They offer simple control interfaces that are easy to operate and understand in automation systems [1].
• Medical Devices: They are utilized in patient monitoring equipment, diagnostic tools, and surgical equipment due to their ease of disinfection and ability to integrate antimicrobial properties [2][6].
• Aerospace and Military Applications: They are suitable for aerospace and military applications due to their ability to withstand harsh environments [2].
• Transportation: They are used in the transportation industry [5][7].
• Food Processing Plants: They are suitable for food processing plants [3].

3. Design Considerations:

• Material Selection:
  • Polyester: It is frequently used due to its chemical resistance and ability to withstand higher temperatures [8][9].
  • Polycarbonate: It provides ease of printing and die-cutting [3].
  • Acrylic: It is strong and can provide display durability and stiffness [8].
• Tactile Feedback: Metal domes or polyester domes can be used to provide tactile feedback [3][10].
• Adhesives: Factors to consider when choosing an adhesive include application surface, service temperature, and environmental considerations such as chemical exposure and humidity [8]. 3M 200MP high-performance adhesives are typically the industry standard [8].
• Backlighting: Options include LEDs, fiber optics, and light guide films for use in dim lighting conditions [3][11].
• Circuitry: The choice between integrating a printed circuit board or flexible circuit depends on the product and its requirements [11].
• Standards: It's important to be aware of which policies apply, whether for traceability or sanitizing and disinfecting, so they can be met [12]. Some manufacturers must follow requirements outlined in the UL94 standard concerning the flammability of plastic components, the IP standards that measure product sealing, and all applicable NEMA standards [12].

4. How They Improve Equipment Durability:

• Sealed Against Contaminants: They can be engineered to be dust-tight, splash-proof, or waterproof, and resistant to harsh cleaning agents and solvents [3].
• Fewer Mechanical Failure Points: They use printed circuits and pressure-sensitive contact layers, resulting in fewer mechanical components and fewer failure points [3].
• Resistance to Environmental Factors: The materials used are UV-stable and resistant to extreme temperatures, oils, chemicals, alcohol, and disinfectants [3].


  Membrane switch Performance Index:



How to order:

• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote

• Arrange the payment, After payment, we will ship send our artwork for your confirm within 3 days before sample ,and sample lead time is 7 business days

As usual .

mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity

Our Services :

1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

more photo show:



Sample room:
