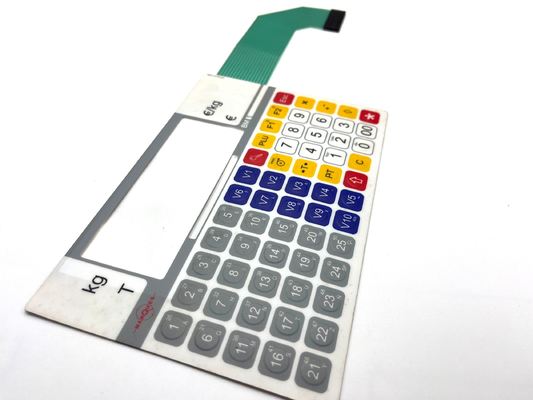

Versatile Tactile Membrane Switch For Wide Range Of Applications In Electronic Control
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,ROHS,REACH,UL |
| Model Number: | 20251104-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first ,then custom carton |
| Delivery Time: | 5 days for samples ,10 days for batch |
| Payment Terms: | T/T,, Western Union,Paypal |
| Supply Ability: | 31000 pcs a month |
|
Detail Information |
|||
| Adhesive: | 3M467 Sony Adhesive Or Other | Tail Contact Pitch: | 2.54MM Or Others |
|---|---|---|---|
| Shape: | Custom Design | Connector Type: | ZIF Connector Or Female Connector |
| Keypad Button Material: | PET/PC | Storage Temperature: | -40°C To 85°C |
Product Description
Versatile Tactile Membrane Switch For Wide Range Of Applications In Electronic Control
A versatile tactile membrane switch is a significant component in electronic control systems, widely used across various applications. Here’s a brief overview of its features and uses:
Key Features
-
Tactile Feedback: Provides a noticeable click or feel when pressed, enhancing user experience by confirming actuation.
-
Durability: Typically constructed from robust materials, such as polyester or polycarbonate, which offer resistance to wear and tear.
-
Customizable Designs: Available in various sizes, shapes, and colors, allowing for tailored solutions to meet specific design requirements.
-
Sealed Against Contaminants: Often designed to be waterproof and dustproof, making them suitable for harsh environments.
-
Low Profile: Their slim design allows for integration into compact devices without adding bulk.
Applications
-
Consumer Electronics: Used in remote controls, appliances, and personal gadgets.
-
Medical Devices: Essential in equipment like diagnostic machines and monitoring tools, where reliability is critical.
-
Industrial Controls: Found in machinery interfaces, control panels, and automation systems.
-
Automotive Systems: Commonly integrated into dashboards and control systems for ease of operation.
-
Home Automation: Utilized in smart home devices for controlling lighting, security, and climate systems.
Advantages
- Cost-Effective: Generally less expensive to produce than mechanical switches.
- Lightweight: Reduces the overall weight of electronic devices.
- Easy to Integrate: Can be seamlessly incorporated into various electronic designs.
Features:
- Product Name: Tactile Membrane Switches
- Metal Domes: Nickel Or Gold Plated Or Others
- Circuit: Printing Silver Ink On PET Material
- Material: Polyester Or Polycarbonate
- Structure: 6 Layers
- Life Cycles: 500,000-1,200,000
Looking for a Graphic Overlay Membrane Switch? Our Tactile Membrane Switches have you covered. With metal domes available in nickel, gold plated, or other options, a circuit printed with silver ink on PET material, and a durable 6-layer structure, these switches can withstand up to 1,200,000 life cycles.
Technical Parameters:
| Metal Domes | Nickel, Gold Plated or Others |
| Max Current | 100MA |
| Overlay | Autotex F150 Polyester |
| Structure | 6 Layers |
| Life Expectancy | 1 Million Cycles |
| Life Cycles | 500,000-1,200,000 |
| Led Windows | Clear, Tinted or Punching |
| Circuit | Printing Silver Ink on PET Material |
| Travel Distance | 0.1-0.5mm |
| Material | Polyester or Polycarbonate |

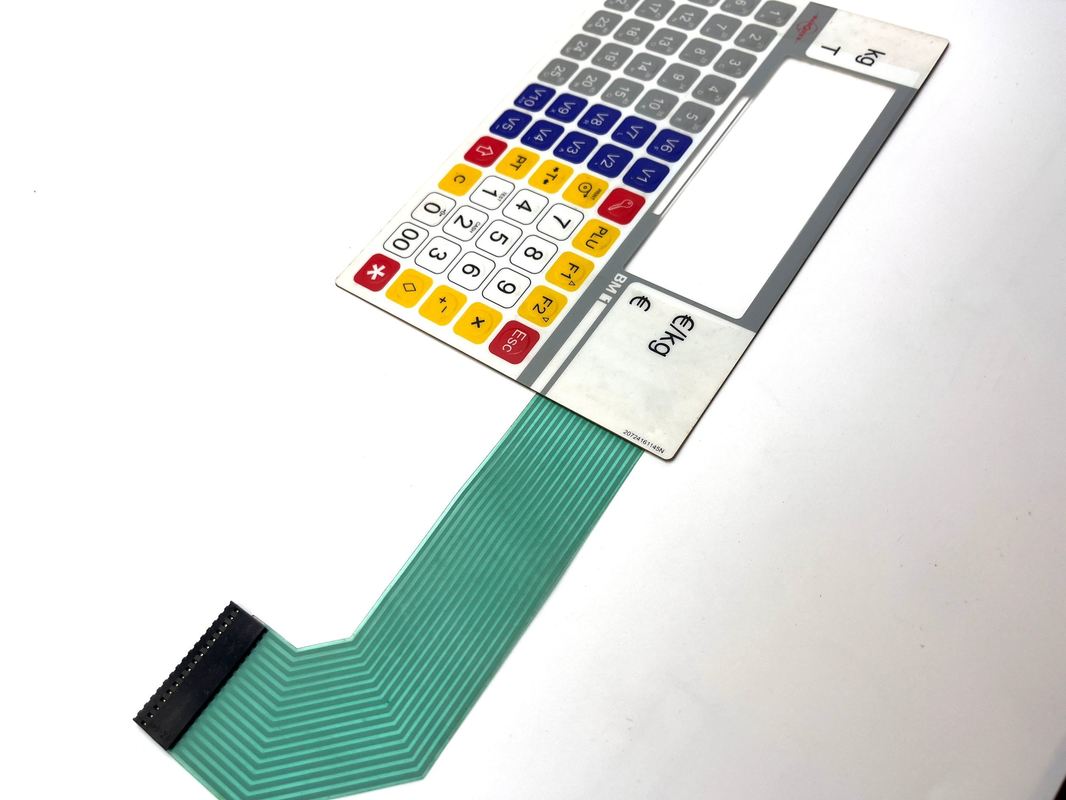

More photos show:
