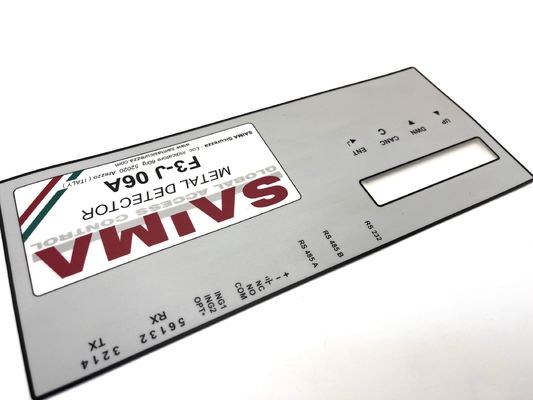

Our Tactile Membrane Switch Provides Intuitive And Operation Improving User Satisfaction And Reducing Errors

Our Tactile Membrane Switch Provides Intuitive And Operation Improving User Satisfaction And Reducing Errors

• Improved Accuracy: Tactile feedback, such as a click or snap, confirms successful button presses, which reduces accidental presses and improves user confidence [3][4]. Studies suggest that the addition of touch-based engineering can reduce mistakes by up to 40% [5].
• Enhanced User Experience: Tactile switches provide a clear response with each press, making it easier for users to know when their input has registered [2][6]. This is especially useful in applications where precise feedback is necessary, such as medical equipment, industrial control panels, and devices used in noisy environments or by users wearing gloves [3][4].
• Error Reduction: The tactile feedback helps reduce the risk of errors by providing a physical confirmation that the button has been actuated [1]. This is particularly important in applications where errors can have significant consequences [7].
• Durability: Tactile membrane switches are designed to withstand the rigors of daily use and challenging environments [6]. They often feature protective coatings and seals that keep out moisture, dust, and contaminants, ensuring long-lasting performance [2][8].
• Customization: Tactile membrane switches offer tailor-made customization, allowing for the fine-tuning of various parameters to meet specific customer requirements [2][6]. This includes the shape, size, and actuation force of the buttons [7].
• Design Flexibility: Membrane switches are compact and lightweight, offering design flexibility and easy integration into various products [6][7].

 Specification:

1)Material (for front or face overlay)

Polyester:

1.Highly versatile for embossing

2.Highly resistant to chemicals

3.Better durability

4.For internal and external use, UV resistance

Polycarbonate:

1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)

2. cost-effective in price

3.For internal and external use

2) Embossing

Rim embossing/pillow embossing/dimple embossing

Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.

3)Windows(for display function)

1. print different colors windows, As transparent grey/Red/green window for display

2. Clear/Transparent window for LCD display

2. Matt/semi-transparent window for LED

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing dots with flat key

5) Embeded LEDs

Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.

LED colors: white, yellow, orange, green, red, or double colors LED.

6)Cable

It is an extension of the printed circuit and is used to communicate with your device.

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

9)Adhesive

mostly used are 3M-double-side glue

10)Backplate-

in aluminum, polycarbonate, acrylic, PCB

Product index:

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Operating humidity: up to 95% RH

Female, male connector, solder pins and heat seal connectors are available

Operating voltage: 35V DC

Operating current: 100mA 1W

Storage temperature: Flat/Metal dome:-40°cto +80°c

Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

Switch stroke: 0.1 to 0.6mm

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V

Operating temperature: Flat/Metal dome:-20°c to +80°c


 More photos show :



About ShenZhen TaiDa Menbrane switch CO.,LTD

Taida are an OEM professional specializing in designing and manufacturing membrane switch ,graphic overlay and adhesive sticker/labels with with more than 15 years experience in Shenzhen of China which are widely used in industrial,electronics,household appliance,medical equipments.we have more than 500 different customers .and most of our customer come from USA ,EU ,UK ,middle east and other famous country of world wide.Taida can supply different kinds of Membrane switch based on each client's request .

Manufacturing
Strong productivity and unified producing process to ensure the fastest delivery time.

Dispatch Department
Power dispatch ability to ensure shipping accuracy and speed

Factory Strength:

Factory Area: Over 2000 Square meters
Employee :＞ 70

R＆D
Continued quality improvement ,professional Tech support and latest design
From our R＆D department for customers’ demand or samples
