Tactile Membrane Switch Responsive And High-Performance Control For Your Industrial Needs
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001 |
| Model Number: | 20251023-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first ,then custom carton |
| Delivery Time: | 5 days for samples ,10 days for batch |
| Payment Terms: | communication |
| Supply Ability: | 80000 pcs a month |
|
Detail Information |
|||
| Surface Finish: | Velvet Texture Or Glossy | Life Cycle: | 1 Million Times |
|---|---|---|---|
| Adhesive: | 3M467,3M468,Sony ,3M9448A Or Other | Printing Method: | Screen Printing,digital Printing |
| Matching Color: | Pantone And RAL | Operating Voltage: | ≤50VDC |
| Size: | Custom Design | Pass: | ISO9001 2008RoHS |
Product Description
Tactile Membrane Switch Responsive And High-Performance Control For Your Industrial Needs
Tactile membrane switches offer responsive and high-performance control for various industrial needs. Here's a breakdown of their key aspects:
1. What are Tactile Membrane Switches?
- They are a type of electrical switch commonly used in electronic devices and industrial machinery [1].
- They provide a clear physical response, such as a snap or click, when pressed, confirming that the input has been registered [2][3]. This tactile feedback enhances user confidence and accuracy, especially in medical and industrial settings [2].
- They consist of flexible layers over a printed circuit [4][5].
2. Key Features and Benefits
- Tactile Feedback: Provides a distinct "click" or tactile response when pressed, assuring the user that the button press has been registered [4][6].
- Durability: They are durable and can withstand harsh environmental conditions [1][7]. They are designed to endure exposure to chemicals, dust, moisture, and extreme temperatures [7][8].
- Reliability: They offer dependable operation and lasting strength [9].
- Customization: They can be customized to meet specific application needs, including actuation force, travel distances, and tactile responses [1]. They can also be printed with custom graphics and icons [1].
- Sealed Design: Their sealed construction protects against moisture, dust, and chemicals, ensuring longevity in harsh environments [2][3].
- User-Friendly: They provide a user-friendly and reliable way to control electronic devices [1].
3. Applications
- Industrial Controls: Used in machinery, equipment, and control panels due to their durability and reliability [1][2]. The tactile feedback makes it easier for workers to operate equipment, even when wearing gloves [1].
- Medical Devices: Ideal for medical devices like patient monitors, infusion pumps, and diagnostic equipment because they can be easily sterilized and are resistant to moisture [1][3].
- Consumer Electronics: Commonly used in remote controls, calculators, and gaming devices [1][7].
- Aerospace and Defense: Used in cockpit controls, missile launch systems, and radar systems because of their ability to withstand extreme temperatures and vibration [7].
- Automotive: Used in dashboard controls, door locks, and window controls due to their resistance to moisture, heat, and chemicals [7].
4. Types of Tactile Membrane Switches
- Metal Dome Switches: Incorporate a metal dome layer to deliver a crisp tactile "click" [6].
- Polyester Dome Switches: Offer tactile feedback [5].
5. Factors Ensuring Optimal Performance
- Actuation Force: Tactile membrane switches offer a responsive tactile feedback with an actuation force typically between 150 and 500 grams [9].
- Lifespan: They are built to last, with a lifespan of over 1 million actuations [9].
Features:
- Product Name: Tactile Membrane Switches
- Overlay: Autotex F150 Polyester
- Material: Polyester Or Polycarbonate
- Max Current: 100MA
- Structure: 6 Layers
- Life Expectancy: 1 Million Cycles
Technical Parameters:
| Material | Polyester Or Polycarbonate |
| Max Current | 100MA |
| Overlay | Autotex F150 Polyester |
| Metal Domes | Nickel Or Gold Plated Or Others |
| Life Expectancy | 1 Million Cycles |
| Adhesive | 3M Adhesive Or Others |
| Travel Distance | 0.1-0.5mm |
| Product Type | Tactile Membrane Switches |
| Structure | 6 Layers |
| Circuit | Printing Silver Ink On PET Material |

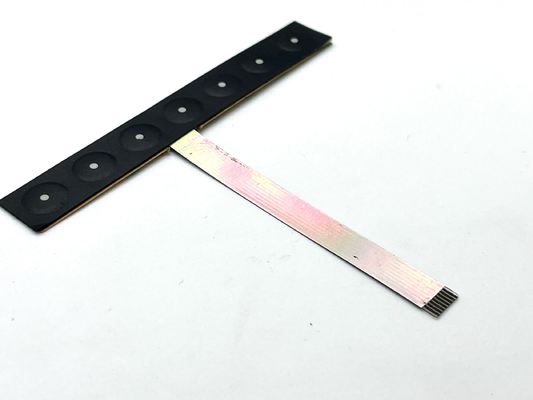

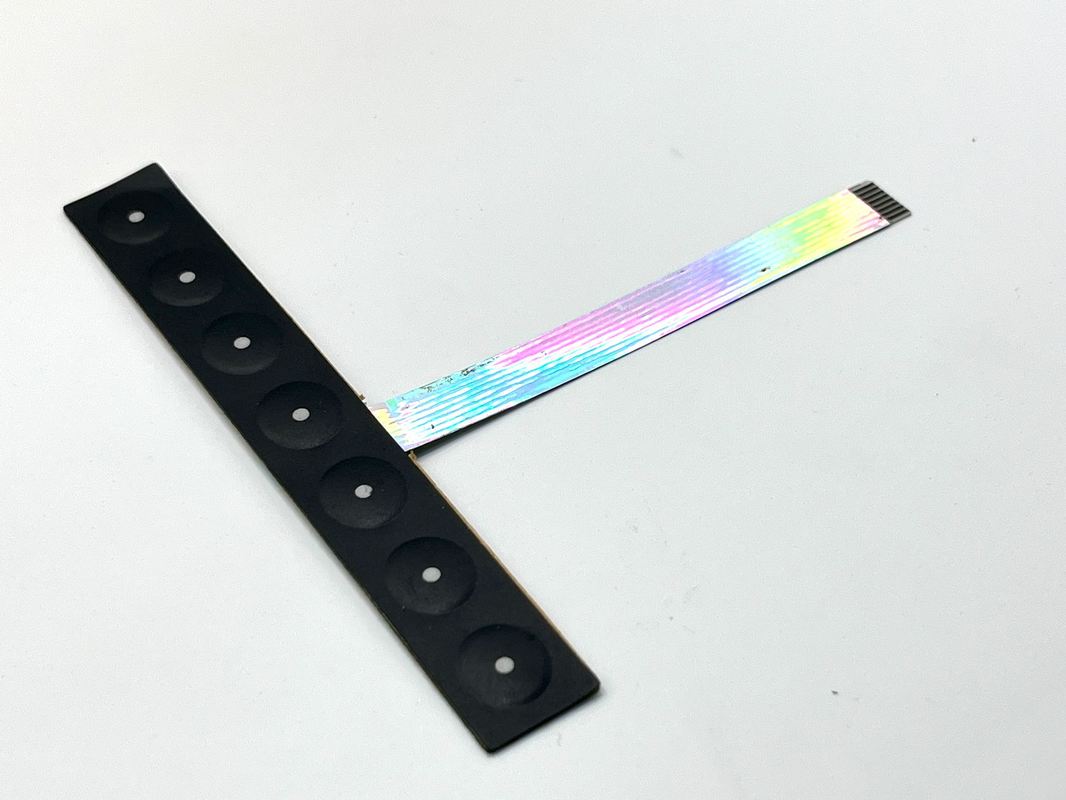

More photos show:
Customization:
Packaging Details: PE bags first, then custom carton
Delivery Time: 5 days for samples, 10 days for batch
Certification: ISO9001
Minimum Order Quantity: 100 pcs
Price: communication
Payment Terms: communication
Supply Ability: 50000 pcs a month
Metal Domes: Nickel or Gold Plated or Others
Model Number: 0615-01
Place of Origin: DongGuan of China
Life Expectancy: 1 Million Cycles
LED Windows: Clear, tinted or punching
Brand Name: Taida or custom design
Max Current: 100MA
Circuit: Printing Silver Ink on PET Material
Our company specializes in manufacturing Capacitive Membrane Switches, Differential Pressure Switches, Graphic Overlay Membrane Switch, and other customized products. We offer various services to meet your needs, such as custom design, different metal dome options, LED window options, and circuit printing options. We guarantee ISO9001 certification and provide excellent quality products with a life expectancy of 1 million cycles. Our minimum order quantity is 100 pcs, and we have the ability to supply up to 50,000 pcs a month. Contact us for more information about pricing and payment terms. Our standard packaging includes PE bags first, then custom carton, and we can deliver samples in 5 days and batches in 10 days.
Support and Services:
FAQ:
Q1: What is the brand name of the product?
A1: The brand name of this product is Taida, but we also offer custom design options.
Q2: What is the model number of the product?
A2: The model number of this product is 0615-01.
Q3: Where is the product manufactured?
A3: This product is manufactured in DongGuan, China.
Q4: Does the product have any certifications?
A4: Yes, this product has ISO9001 certification.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 100 pcs.
Q6: What is the price of the product?
A6: The price of the product will depend on the quantity ordered and any customization options. Please contact us for pricing.
Q7: What are the packaging details for this product?
A7: The product will be packaged in PE bags first, then a custom carton.
Q8: What is the delivery time for this product?
A8: The delivery time for samples is 5 days, and for batch orders is 10 days.
Q9: What are the payment terms for this product?
A9: Payment terms will be communicated with the customer based on their specific order.
Q10: What is the supply ability for this product?
A10: The supply ability for this product is 50000 pcs a month.
