Pedestal Embossing Flat Membrane Switch With Metal Stainless Steel Domes For Enhanced Tactile Feedback
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20251013-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 11000 +pcs + a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone , RAL Or CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM Or Others | Adhesive: | 3M467 Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Life Cycle: | 1 Million Times |
| Printing: | Silk Screen Printing | Insulation Resistance: | > 100MΩ |
Product Description

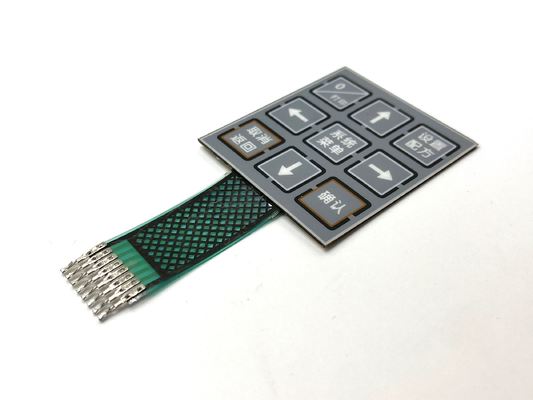

Pedestal Embossing Flat Membrane Switch With Metal Stainless Steel Domes For Enhanced Tactile Feedback
A pedestal embossed flat membrane switch with metal stainless steel domes enhances tactile feedback by providing a distinct physical sensation when the switch is pressed [1][2]. This tactile feedback confirms switch activation, which is especially useful when accuracy is important, such as in medical devices or industrial equipment [2][3].
Here's a breakdown of the components and features that contribute to this type of switch:
- Membrane Switch Layers: Membrane switches typically consist of multiple layers [2][3]. These layers include a graphic overlay, a spacer, circuit layers, and an adhesive layer [2].
- Pedestal Embossing: Embossing creates a raised area on the switch surface, improving the tactile feel and indicating the switch location [4][5].
- Metal Domes: Metal domes, often made of stainless steel, are placed between the membrane layers [1][6]. When pressed, the dome collapses, creating a tactile "click" or "snap" [1][3]. Stainless steel domes are available in various sizes and actuation forces, and they offer reliability in extreme temperatures [5].
- Tactile Feedback: The metal dome provides tactile feedback, confirming that the switch has been activated [2][3]. This tactile response improves accuracy and user satisfaction [2][3].
- Enhanced User Experience: Tactile feedback makes the user experience more intuitive and responsive [2]. It gives users a sense of control and trust in the device, increasing user satisfaction [2].
Types of Membrane Switches
Membrane switches come in several types, each with unique features and applications [7][8]:
- Tactile Membrane Switches: These switches provide physical feedback when pressed, usually through a metal or poly dome [7][9].
- Non-Tactile Membrane Switches: These switches don't offer physical feedback; instead, they may use visual or auditory signals to confirm activation [6][10].
- Flexible Membrane Switches: Designed to bend and flex, these switches are suitable for curved surfaces [6][7].
- Rigid Membrane Switches: Mounted on a rigid surface like a metal or plastic panel, these switches are used in fixed locations [6][7].
- Capacitive Membrane Switches: These switches use capacitive sensing to detect touch without physical pressure, offering durability and a sleek design [8][10].
- Hybrid Membrane Switches: Combining different technologies like tactile feedback and backlighting, these switches are ideal for complex applications [8][10].
Membrane Switch specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Membrane switch Performance Index:
|
Our Services :
1Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
2 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
3 Experienced Staffs answer your all question in professional and fluent English
4Customize design is available ,OEM and ODM are welcome
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Reply your inquiry within 24 working hours
