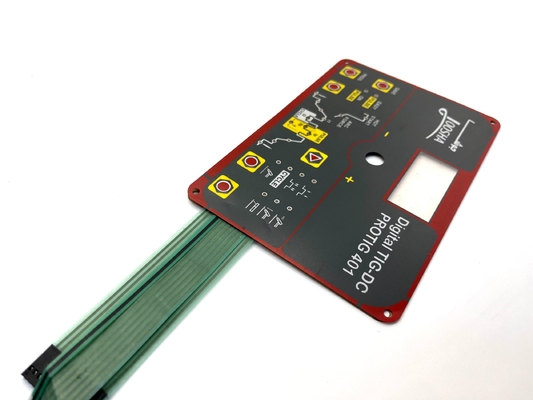

Autotex Polyester Customizable Push Button Switch With ITO Film Design
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20250424-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 12000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM ,1.0MM 0r 2.54MM | Adhesive: | 3M467 Adheisve Or Others |
| Surface Finish: | Velvet Texture | Connector Brand: | ZIF,male Or Female Connector |
| Highlight: | ITO Film Push Button Switch,Customizable Push Button Switch,Autotex Push Button Switch |
||
Product Description
Autotex Polyester Customizable Push Button Switch With ITO Film Design
Types of Push Button Switches
-
Momentary Switches: These switches only remain on while the button is pressed. They are often used in applications like doorbells or computer keyboards.
-
Latching Switches: These switches maintain their state after being pressed. For example, pressing the button once turns the device on, and pressing it again turns it off.
-
Illuminated Switches: Some push button switches come with built-in lights (like LEDs) that indicate the switch's status (on or off).
Features to Consider
-
Voltage Ratings: Push button switches are available for various voltage ratings, including 5V, 12V, 24V, and higher AC and DC voltages.
-
Current Ratings: They can handle different current ratings, typically ranging from 0.1 A to 30 A, depending on the application.
-
Mounting Types: Common mounting styles include panel mount, PCB mount, and surface mount, allowing for flexibility in installation.
-
IP Ratings: Many push button switches have Ingress Protection (IP) ratings, indicating their resistance to dust and water, which is crucial for outdoor or industrial use.
Applications
Push button switches are widely used in:
- Industrial Equipment: For controlling machinery and processes.
- Consumer Electronics: Such as remote controls and appliances.
- Lighting Controls: Including both modern and antique-style switches for home lighting.
Antique Push Button Switches
For those interested in vintage aesthetics, there are also antique-style push button switches that replicate designs from the late 19th to mid-20th century. These switches are built to modern safety standards while providing a classic look, often featuring materials like mother-of-pearl inlay.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
About Taida.pdf
Common membrane keypad structure choose :
About Taida:
Taida is a company and was founded in the 2010 year, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,
Experience:
Taida and engineers have Highly over 15 years experienced and unparalelled engineering solely focused on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year
Factory strength and production capacity:
Over 8 full Automatic and Semi-Automatic printing machine,more than 8 punching machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida′s capability has reached 300, 000PCS/month in a very short period since company established.
Quality Control and Ensure :
Taida’s quality control system has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .
