Flexible 2.54MM Pitch Etch Copper Miniature Tactile Switch With 3M Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20250409-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 41000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK ,or Others |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM | Adhesive: | 3M467 3M9448A Adheisve Or Others |
| Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit | Connector Brand: | ZIF Connector Or Female Connector |
| Highlight: | 3M Adhesive Tactile Switch,2.54MM Pitch Tactile Switch,Miniature Tactile Switch |
||
Product Description

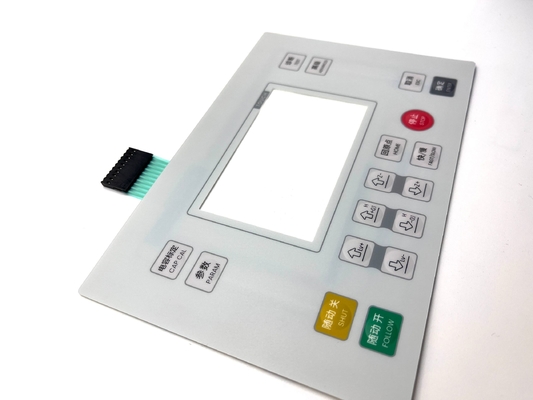

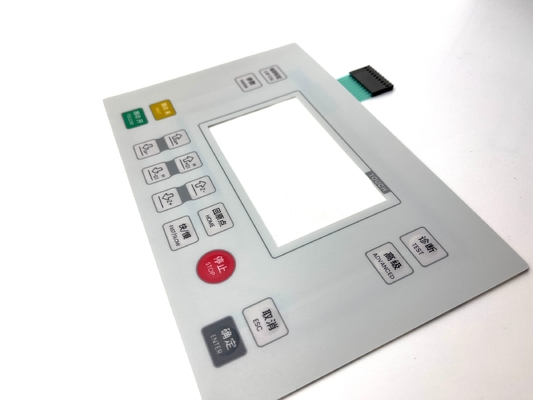

Flexible 2.54MM Pitch Etch Copper Miniature Tactile Switch With 3M Adhesive
Features of Miniature Tactile Switches
-
Size and Design: Miniature tactile switches come in various sizes, typically ranging from 2 x 3 mm to 12 x 12 mm, making them suitable for space-constrained applications. They are available in different configurations, including J bend and gull wing styles for PCB mounting .
-
Actuation Force: These switches require different actuation forces, which can range from 100 gf to over 500 gf, depending on the specific model. This allows designers to choose a switch that fits the tactile feel they want for their application.
-
Electrical Specifications: Most miniature tactile switches operate at low voltages (typically 12V to 32V) and have varying electrical life cycles, often exceeding 100,000 cycles, which makes them reliable for long-term use.
-
Environmental Ratings: Many models come with different Ingress Protection (IP) ratings, such as IP40 or IP67, indicating their resistance to dust and water, which is crucial for applications in harsh environments .
Applications
Miniature tactile switches are widely used across various industries, including:
- Consumer Electronics: Found in devices like cell phones, remote controls, and wearable electronics.
- Automotive: Used in dashboard controls, air conditioning systems, and other user interfaces.
- Medical Devices: Common in portable medical equipment and diagnostic tools.
- Industrial Equipment: Utilized in control panels and instrumentation.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Other photo show :
Electrical Properties:
1, operating voltage: ≤ 50VDC
2, working current: ≤ 100mA
3 Contact resistance: 0.5 ~ 5Ω
4 Insulation resistance: ≥ 100MΩ (100VDC)
5, substrate voltage: 2kDVC
6, spring time: ≤ 6ms
7, loop resistance: 60Ω
8, insulation ink voltage: 100VDC
