Tactile Membrane Keypad With 2.54MM Pitch Of ZIF Connector
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20250221-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 16000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK ,or Others |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM Or Others | Adhesive: | 3M467 Adheisve Or Others |
| Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit | Connector Brand: | ZIF Connector Or Female Connector |
| Highlight: | 2.54MM Pitch Tactile Membrane Keypad,ZIF Connector Tactile Membrane Keypad,Tactile Membrane Keypad |
||
Product Description

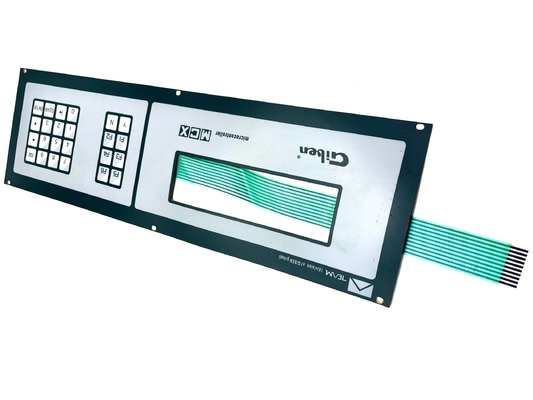

Tactile Membrane Keypad With 2.54MM Pitch Of ZIF Connector
A tactile membrane keypad is a type of input device that consists of a flexible, thin membrane with a series of conductive pathways and tactile feedback features. Here are some key points about it:
-
Structure: It typically comprises three layers: a top layer with printed graphics for the buttons, a middle layer with conductive traces, and a bottom layer that serves as a circuit board.
-
Functionality: When a button is pressed, the top layer makes contact with the conductive layer beneath, completing a circuit and sending a signal to the connected device.
-
Tactile Feedback: Tactile membrane keypads often include features that provide a physical response when a button is pressed, enhancing user experience and helping to confirm input.
-
Applications: These keypads are commonly used in various devices, including appliances, medical equipment, and consumer electronics, due to their durability and resistance to environmental factors.
-
Customization: They can be customized in terms of shape, size, button layout, and graphics, making them versatile for different applications.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
