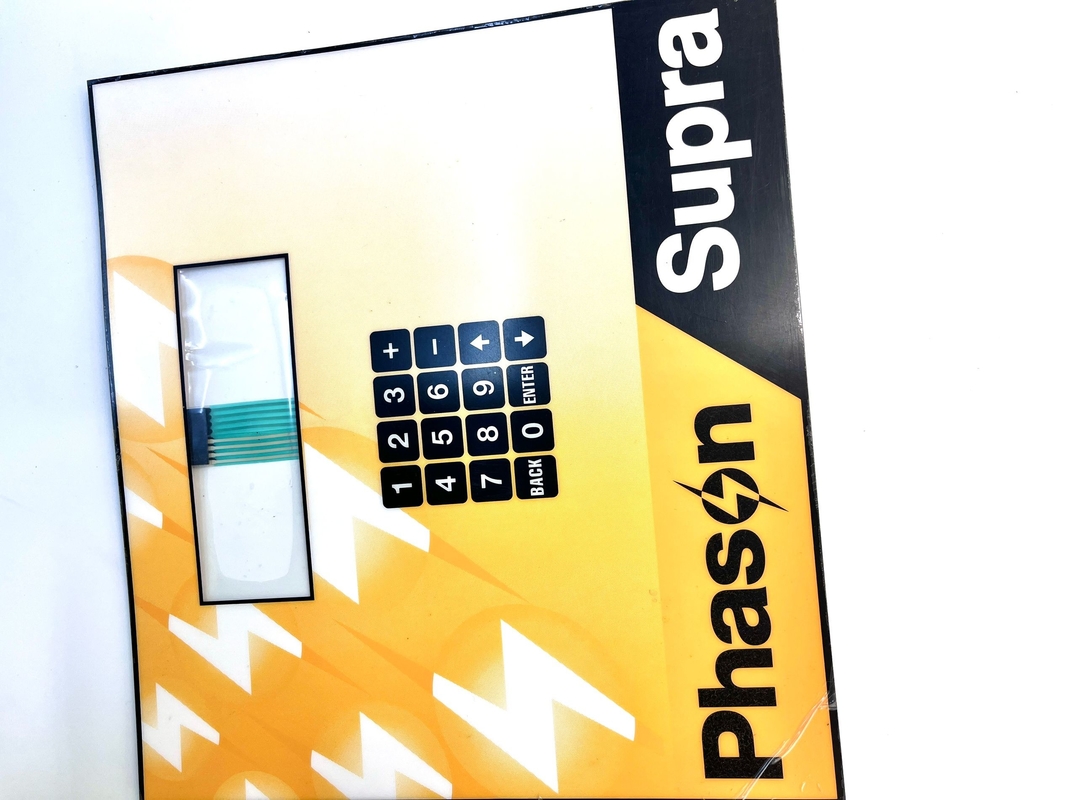

Conductive Silver Ink Printing Membrane Panel Switch For WIFI Telecommunication Device

Conductive Silver Ink Printing Membrane Panel Switch For WIFI Telecommunication Device

Key Features

• Construction: Made of multiple layers, including a graphic overlay, adhesive layer, and a circuit layer.
• Tactile Feedback: Some designs provide tactile feedback to enhance user interaction.
• Customization: Can be printed with custom graphics and labeling for specific functions.
• Waterproof and Dustproof: Many membrane switches are designed to be resistant to moisture and dust, making them suitable for harsh environments.

Applications

• Consumer Electronics: Used in remote controls, appliances, and personal gadgets.
• Medical Devices: Common in equipment that requires easy-to-clean surfaces.
• Industrial Equipment: Found in control panels for machinery and automation systems.

Advantages

• Space-Saving Design: Thinner than traditional switches, allowing for sleek designs.
• Easy Installation: Typically comes with adhesive backing for straightforward mounting.
• Durability: Resists wear and is less prone to damage compared to mechanical switches.


 Specification:

1)Material (for front or face overlay)

Polyester:

1.Highly versatile for embossing

2.Highly resistant to chemicals

3.Better durability

4.For internal and external use, UV resistance

Polycarbonate:

1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)

2. cost-effective in price

3.For internal and external use

2) Embossing

Rim embossing/pillow embossing/dimple embossing

Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.

3)Windows(for display function)

1. print different colors windows, As transparent grey/Red/green window for display

2. Clear/Transparent window for LCD display

2. Matt/semi-transparent window for LED

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing dots with flat key

5) Embeded LEDs

Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.

LED colors: white, yellow, orange, green, red, or double colors LED.

6)Cable

It is an extension of the printed circuit and is used to communicate with your device.

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

9)Adhesive

mostly used are 3M-double-side glue

10)Backplate-

in aluminum, polycarbonate, acrylic, PCB

Product index:

Operating voltage: 35V DC

Operating current: 100mA 1W

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V

Operating temperature: Flat/Metal dome:-20°c to +80°c

Storage temperature: Flat/Metal dome:-40°cto +80°c

Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

Switch stroke: 0.1 to 0.6mm

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Tactile ratio: FC > 40%

Operating humidity: up to 95% RH

Female, male connector, solder pins and heat seal connectors are available
