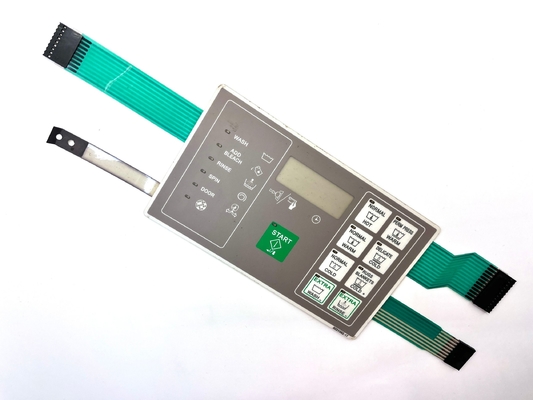

Highly Versatile Pressure Switch Membrane For Chemical Resistance With Waterproof Back Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241130-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone , RAL Or CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design Or Shape Based On Client Requetment |
| Operating Temperature: | -40℃ To 70℃ | Life Cycle: | 1 Million Times |
| Printing: | Silk Screen Printing | Conductor: | Printed Silver |
| Highlight: | highly versatile esd membrane switch,highly versatile membrane switch keypads,chemical resistance esd membrane switch |
||
Product Description
Highly Versatile Pressure Switch Membrane For Chemical Resistance With Waterproof Back Adhesive
Key Features:
- Material: Often made from elastomers or plastics that can withstand specific pressure ranges.
- Sensitivity: Designed to react to slight changes in pressure, ensuring accurate measurements.
- Applications: Commonly found in HVAC systems, automotive applications, and industrial equipment.
Working Principle:
- Pressure Application: When pressure is applied, the membrane flexes.
- Switch Activation: This flexing can either open or close an electrical contact, depending on the design.
- Feedback: Provides a signal to control systems or alert users to pressure changes.
Membrane Switch specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Membrane switch Performance Index:
|

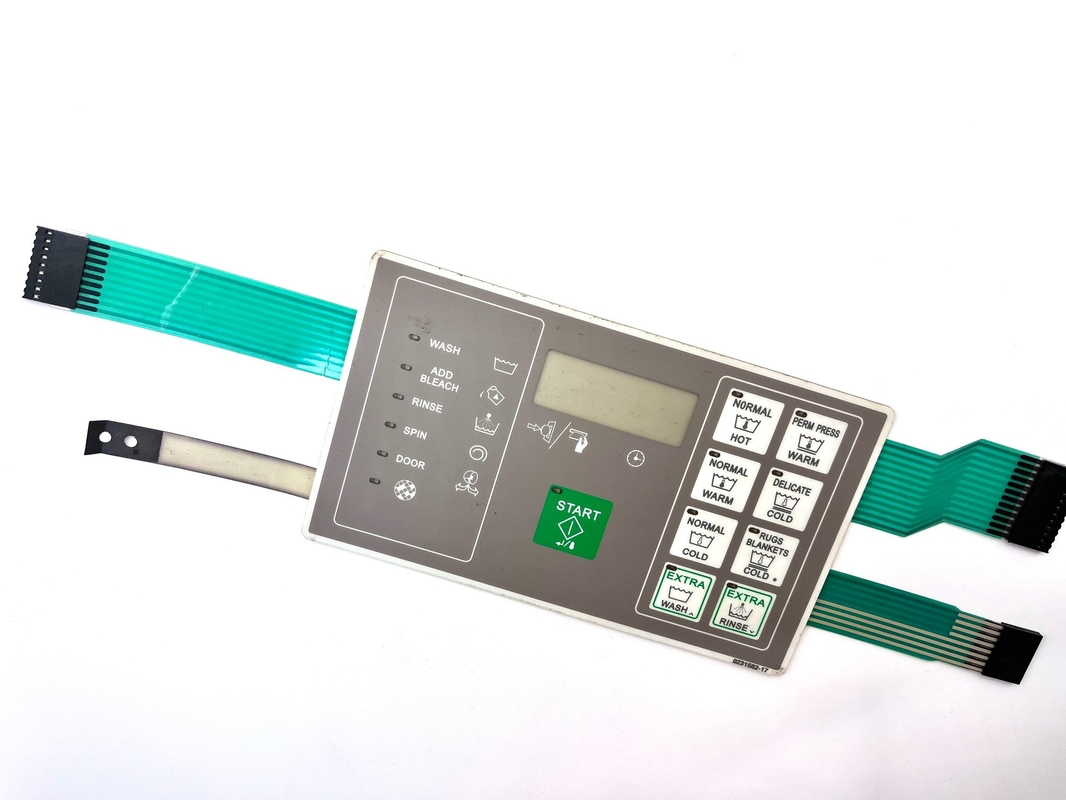

More Photos Display :
