Capacitive Touch Film Custom Control Panel Polyester With Silver Circuit
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241119-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate | Color: | Pantone ,RAL,RGB, CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM | Adhesive: | 3M Adheisve Or Others |
| Button Type: | Metal Dome Or Poly Dome | Size: | Custom Design |
| Life Cycle: | 1 Million Times | Printing: | Silk Screen Printing |
| Highlight: | polyester capacitive touch membrane,polyester capacitive membrane switch,silver circuit capacitive touch membrane |
||
Product Description

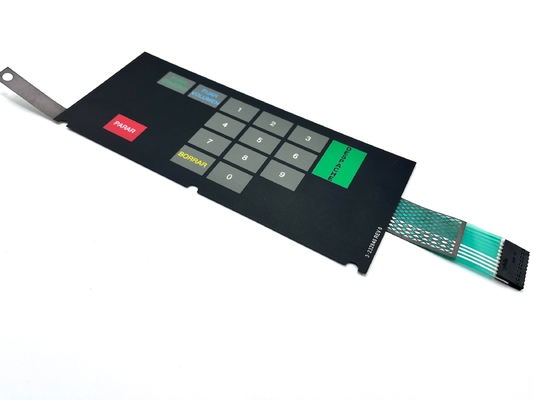

Capacitive Touch Film Custom Control Panel Polyester With Silver Circuit
Creating a custom capacitive touch panel using polyester with a silver circuit involves several key considerations. Here’s a breakdown of the steps and elements involved in the process:
1.Testing
- Functionality Testing: Once assembled, test the panel for responsiveness, durability, and reliability in various conditions.
- Environmental Testing: If it will be used outdoors, test for UV resistance and moisture protection.
2. Applications
- Industries: Consider applications in consumer electronics, industrial controls, medical devices, or home automation.
3. Manufacturing Process
- Printing the Circuit: Use screen printing or inkjet printing to apply the silver conductive ink onto the polyester film according to your design.
- Laminating: Optionally, laminate the printed polyester for added protection against scratches and environmental factors.
- Touch Sensor Integration: Integrate the capacitive touch sensors with a microcontroller to process the touch inputs. Ensure proper calibration for sensitivity.
4.Design Specifications
- Circuit Design: Create a schematic for the touch-sensitive areas. This usually involves a grid or specific patterns that detect touch based on capacitance changes.
- User Interface: Design the layout considering user experience. Include elements like buttons, sliders, or custom icons.
5. Finishing Touches
- Mounting Options: Decide how the panel will be mounted. Consider using adhesive backing or mechanical fasteners depending on the application.
- Aesthetic Options: Add graphics or color to the polyester film to enhance appearance and functionality.
6. Material Selection
- Polyester Film: Choose a high-quality polyester film that is durable and has good optical properties. Common options include PET (polyethylene terephthalate).
- Silver Conductive Ink: For the circuit pattern, use silver conductive ink that can be printed onto the polyester film. Ensure it has good conductivity and adhesion properties.
Additional Considerations
- Cost: Evaluate the cost of materials and manufacturing processes.
- Quantity: Determine if you need a prototype or larger production runs, as this can affect manufacturing methods.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Membrane switch Performance Index:
|
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
