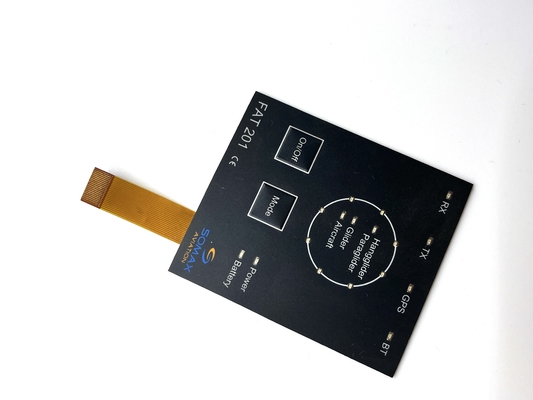

Flexible 1.25MM Pitch Etch Copper Mechanical Key Switches With 3M Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241113-07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM Or Others | Adhesive: | 3M Adheisve Or Others |
| Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit | Surface Finish: | Velvet Texture Or Glossy |
| Highlight: | flexible tactile membrane switch,flexible tactile membrane keyboard,3m adhesive tactile membrane switch |
||
Product Description
Flexible 1.25MM Pitch Etch Copper Mechanical Key Switches With 3M Adhesive
Types of Mechanical Switches
-
Tactile Switches:
- Provide a noticeable bump when the key is actuated, allowing for feedback without an audible click.
- Examples: Cherry MX Brown, Gateron Brown.
-
Clicky Switches:
- Feature both a tactile bump and an audible click, making them popular for typists who enjoy feedback.
- Examples: Cherry MX Blue, Gateron Blue.
-
Linear Switches:
- Smooth and consistent keystroke with no tactile bump or audible click.
- Examples: Cherry MX Red, Gateron Red.
Advantages of Mechanical Key Switches
- Variety: A wide range of switches are available, catering to different preferences for feel, sound, and actuation force.
- N-Key Rollover: Most mechanical keyboards support n-key rollover, allowing multiple keys to be pressed simultaneously without ghosting.
- Durability: Mechanical switches often have a lifespan of 50 million keystrokes or more.
- Customization: Many mechanical keyboards offer customizable keycaps and switches, allowing users to tailor their experience.
Considerations When Choosing Mechanical Switches
- Typing Feel: Your preference for tactile feedback or smoothness will influence your choice.
- Actuation Force: Different switches require varying amounts of force to actuate, which can affect comfort during long typing sessions.
- Noise Level: If you're in a shared space, consider whether you want a quiet or clicky switch.
Popular Brands
- Gateron: Known for producing smooth switches at a lower price point.
- Kailh: Offers a variety of switches, including some innovative designs like the Box switches.
- Cherry: One of the most recognized names in mechanical switches.
- Razer: Produces proprietary switches designed for gaming performance.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Other photo show :
Electrical Properties:
1, operating voltage: ≤ 50VDC
2, working current: ≤ 100mA
3 Contact resistance: 0.5 ~ 5Ω
4 Insulation resistance: ≥ 100MΩ (100VDC)
5, substrate voltage: 2kDVC
6, spring time: ≤ 6ms
7, loop resistance: 60Ω
8, insulation ink voltage: 100VDC
Our Services :
1 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Reply your inquiry within 24 working hours
5 Good service ,High quality ,test all goods and short lead time supply
6 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB,
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
