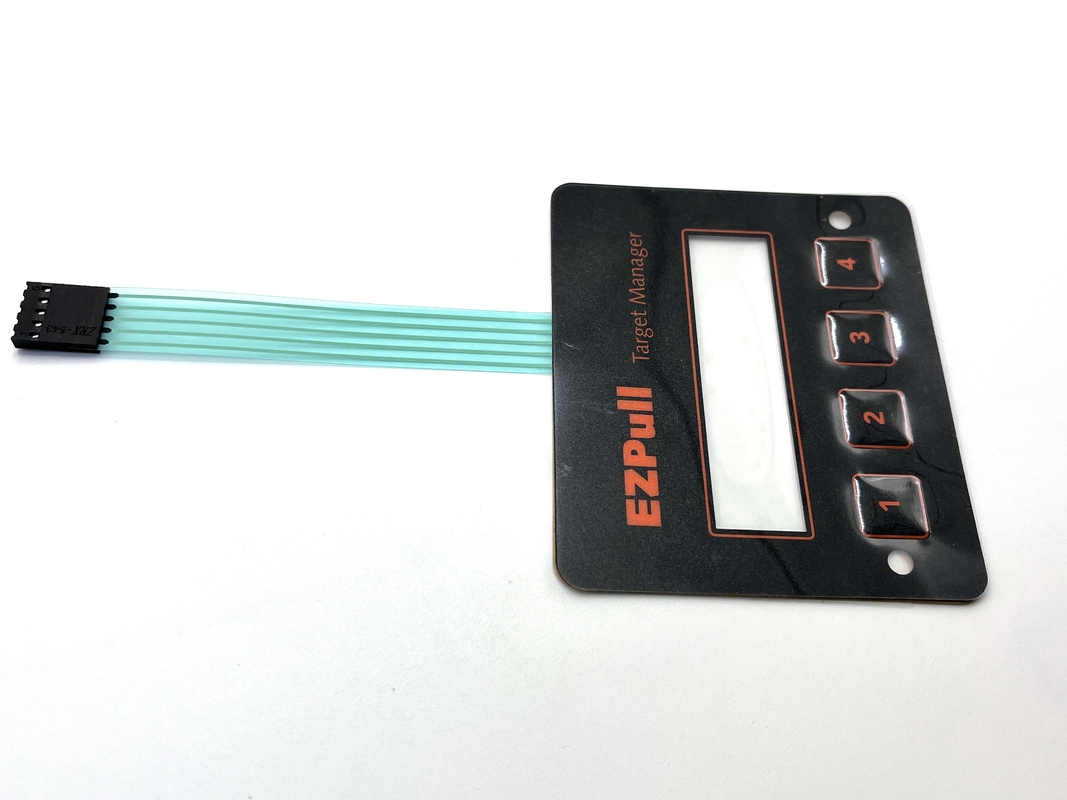

Tactile Membrane Keypad With Embossing For Highly Versatile Application
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241105-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 30000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Dome | Connector Type: | ZIF , Female Or Male Connector |
| Embossing Shape: | Rim Embossing ,Pollow Embosing | Circuit Options: | FPC ,silver Plate ,or PCB Board |
| Size: | Customized | Operating Temperature: | -20℃ To 70℃ |
| Highlight: | Highly Versatile Tactile Membrane Keypad,Tactile Membrane Keypad,Embossing Tactile Membrane Keypad |
||
Product Description
Tactile Membrane Keypad With Embossing For Highly Versatile Application
Characteristics
- Durability: Resistant to dust, moisture, and other environmental factors, making them suitable for various applications.
- Space Efficiency: Thin and lightweight, allowing for compact designs.
- Customization: Can be easily customized in terms of layout, design, and functionality.
- Applications: Commonly used in consumer electronics, appliances, medical devices, and industrial equipment.
Advantages
- User-Friendly: The tactile feedback improves usability, especially in environments where visual confirmation is difficult.
- Cost-Effective: Generally less expensive to produce than mechanical switches or other input devices.
- Design Flexibility: Offers a wide range of design options for manufacturers.
Disadvantages
- Limited Lifespan: While durable, they may not last as long as mechanical switches under heavy use.
- Sensitivity to Temperature and Humidity: Performance can be affected by extreme environmental conditions.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows or cut out | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure | Non-tactile keys: printed silver spot | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB board | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.3MM ,0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like T4000 or others | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Performance Index
|
More photos show :
