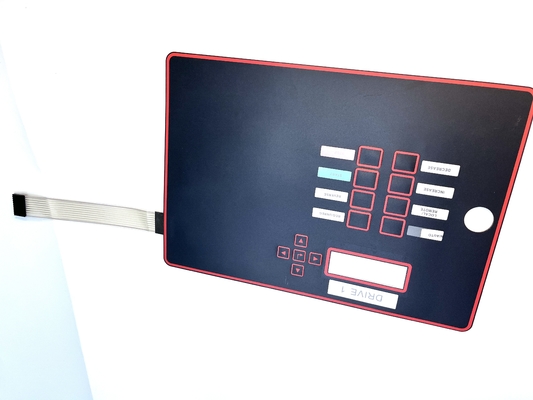

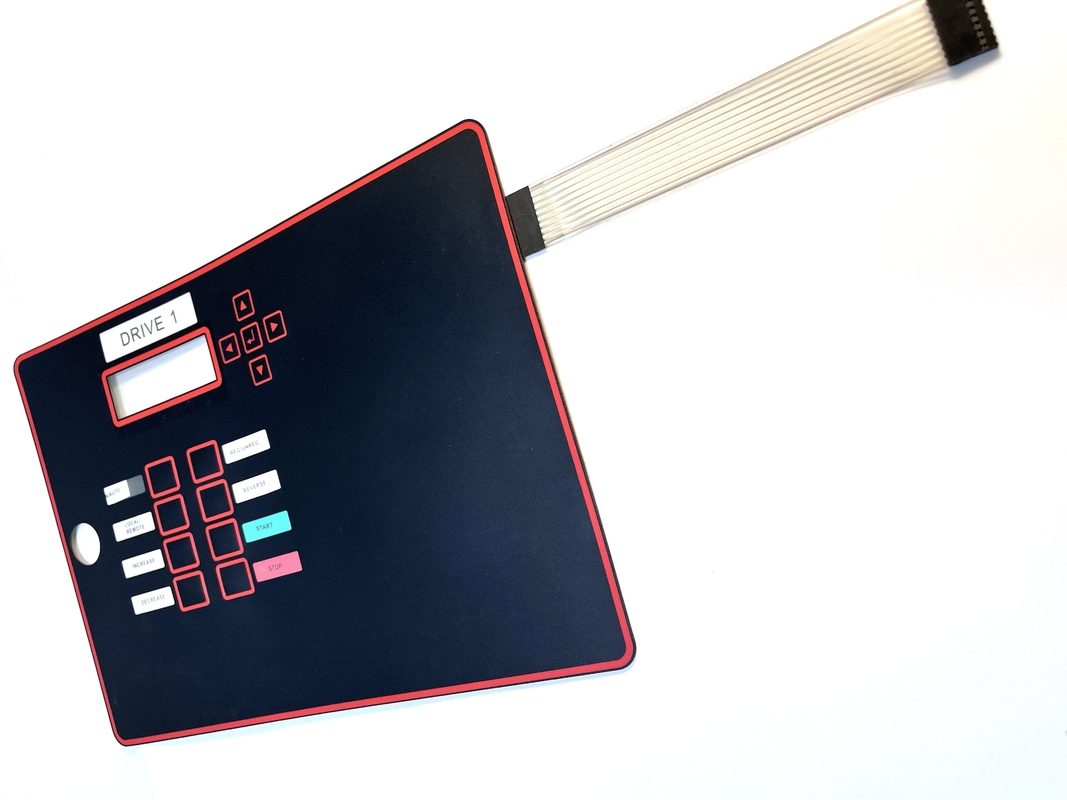

Customized Electric Standard Membrane Keypad For Professional Industry Controller
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 241102-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Adhesive: | 3M Adheisve Or Others | Button Type: | Metal Dome |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Conductive Silver Spot |
| Pitch Of Contact: | 2.54MM Or Other Request | Connect Option: | Female Housing |
| Application: | Industry Controller | Size: | Custom |
| Highlight: | Customized Electric Membrane Keypad,Electric Standard Membrane Keypad,Professional Industry Controller Membrane Keypad |
||
Product Description
Customized Electric Standard Membrane Keypad For Professional Industry Controller
Disadvantages
- Durability: The lifespan of membrane keypads is usually shorter than that of mechanical switches, particularly under heavy use.
- Limited Key Travel: The lack of key travel can make them less comfortable for some users compared to traditional keyboards.
- Tactile Feedback: Membrane keypads typically provide little to no tactile feedback, which can affect user experience, especially for typing.
Applications
Standard membrane keypads are commonly used in:
- Medical Devices: Equipment requiring easy and hygienic user input.
- Point of Sale Systems: Used in cash registers and self-service kiosks.
- Consumer Electronics: Remote controls, microwaves, and washing machines.
- Industrial Equipment: Control panels and machinery interfaces.
Characteristics of Standard Membrane Keypads
Construction:
- Flexible Design: The top layer is usually printed with the symbols or letters and is flexible, allowing for easy pressing.
- Layers: A membrane keypad consists of multiple layers, including a top graphic layer, a spacer layer, and a bottom circuit layer.
Operation:
- When a key is pressed, it compresses the top layer and makes contact with the circuit layer beneath it, completing an electrical circuit that registers the input.
Advantages
- Sealed Design: Many membrane keypads can be designed to be water-resistant or dustproof, enhancing durability in certain applications.
- Cost-Effective: Membrane keypads are generally cheaper to produce compared to mechanical or capacitive keypads.
- Space-Saving: They are thin and lightweight, making them ideal for compact devices.
- Easy to Clean: The smooth surface makes them easy to wipe down and maintain, which is useful in environments where hygiene is important.
Product spec :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Other photo show :
