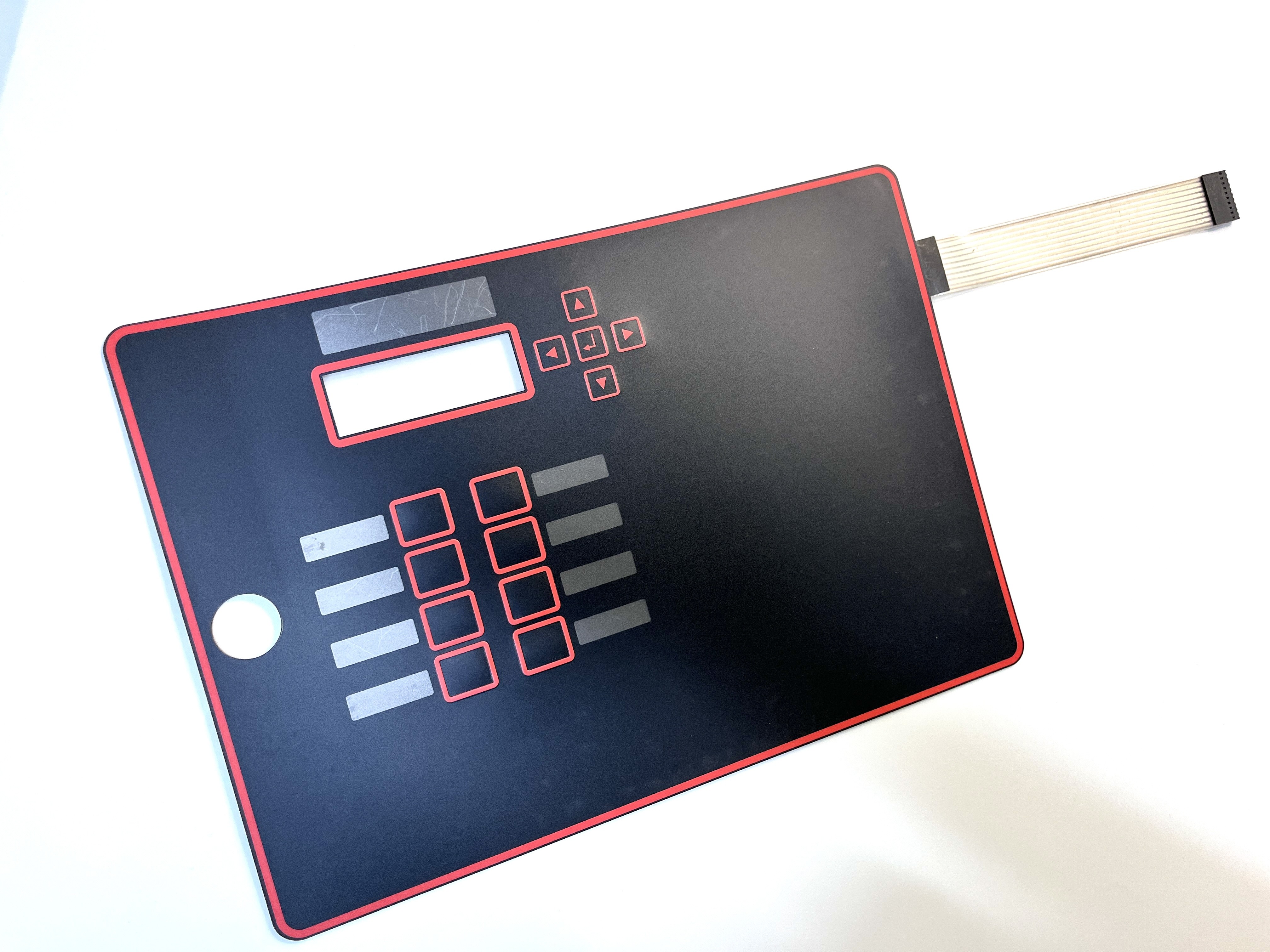

Industrial Polyester miniature Tactile Switch With Flex Adhesive Layer
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241101-09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 15000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome, | Application: | Industrial Machinery Or Other Custom Design |
| Printing Method: | Screen Printing,digital Printing | LED Type: | 0805,0603 Or Other |
| LED Color: | Red ,blue ,white Or Other Custom Design | Circuit Option: | PET Circuit Flexible |
| Connector Type: | Soldering Or ZIF Connector | Overlay Color: | Custom |
| Highlight: | Flex Adhesive Layer Tactile Switch,miniature Tactile Switch,Industrial Polyester Tactile Switch |
||
Product Description
Industrial Polyester Miniature Tactile Switch With Flex Adhesive Layer
Applications
- Automotive: Found in dashboards and control panels.
- Industrial Equipment: Used in machinery and control systems for user input.
- Consumer Electronics: Used in devices like smartphones, cameras, and game controllers.
Features
- Lifespan: Many miniature tactile switches are rated for thousands to millions of cycles, ensuring durability.
- Mounting Type: Available in through-hole or surface-mount configurations for easy integration into circuit boards.
- Size: Typically small in dimensions, often measuring just a few millimeters.
- Tactile Feedback: Designed to provide a noticeable click or resistance when pressed, allowing users to feel when the switch is activated.
- Actuation Force: Varies between models, usually ranging from a few grams to higher force levels, depending on the application.
Considerations
When selecting a miniature tactile switch, consider the following:
- Dimension and Footprint: Ensure it fits your design.
- Actuation Force: Choose a force that feels comfortable for the intended application.
- Electrical Ratings: Check voltage and current ratings to match your circuit requirements.
- Environmental Ratings: Look for switches with appropriate ratings for dust and moisture resistance if needed.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use |
1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use 4 many Lexan label choose |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB board | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.3MM ,0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
Another photo show :
FAQ:
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.
Q2. What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q3. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
