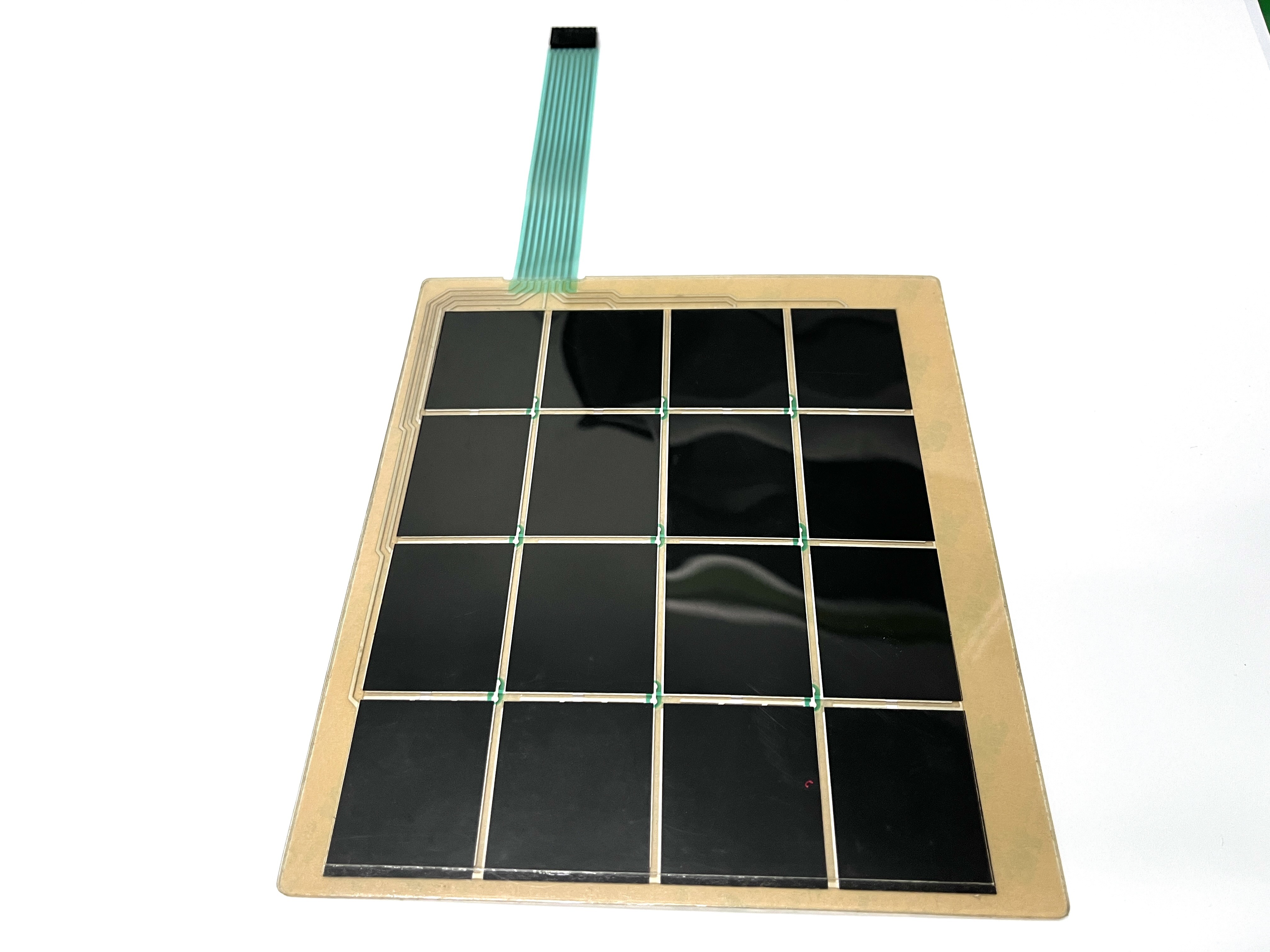

Tactile FFC Flex Cable Silicone Membrane Switch With Female Scrip Housing
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241031-19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | Female Connector |
| Circuit Options: | FFC Flex Cable | Insulation Resistance: | ≥100MΩ |
| Finished: | Flat | Waterproof Level: | IP65 Or Higher |
| Highlight: | Female Scrip Housing Membrane Switch,Silicone Membrane Switch,Tactile FFC Flex Cable Membrane Switch |
||
Product Description
Tactile FFC Flex Cable Silicone Membrane Switch With Female Scrip Housing
Features
Durability: Silicone is resistant to moisture, dust, and other environmental factors, making these switches suitable for harsh conditions.
Customization: They can be easily customized in terms of shape, size, and graphic design to meet specific requirements.
Construction: Made from flexible silicone rubber, these switches often have printed graphics and can include tactile feedback.
Compatibility: They can be integrated with various electronic components, making them versatile for different applications.
Tactile Feedback: Many designs include tactile domes that provide a noticeable click when pressed, enhancing user experience.
Applications
- Industrial Equipment: Employed in machinery and control panels where robustness is essential.
- Automotive: Found in dashboards and control interfaces.
- Consumer Electronics: Used in remote controls, appliances, and personal devices.
- Medical Devices: Ideal for equipment requiring durability and cleanliness.
Advantages
- Lightweight: The flexible material makes them easy to integrate into lightweight devices.
- Cost-Effective: Generally cheaper to produce compared to other switch types.
- Sealing Properties: Offers good sealing against the elements, which is crucial for many applications.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Other photo show :
Product Index:
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
