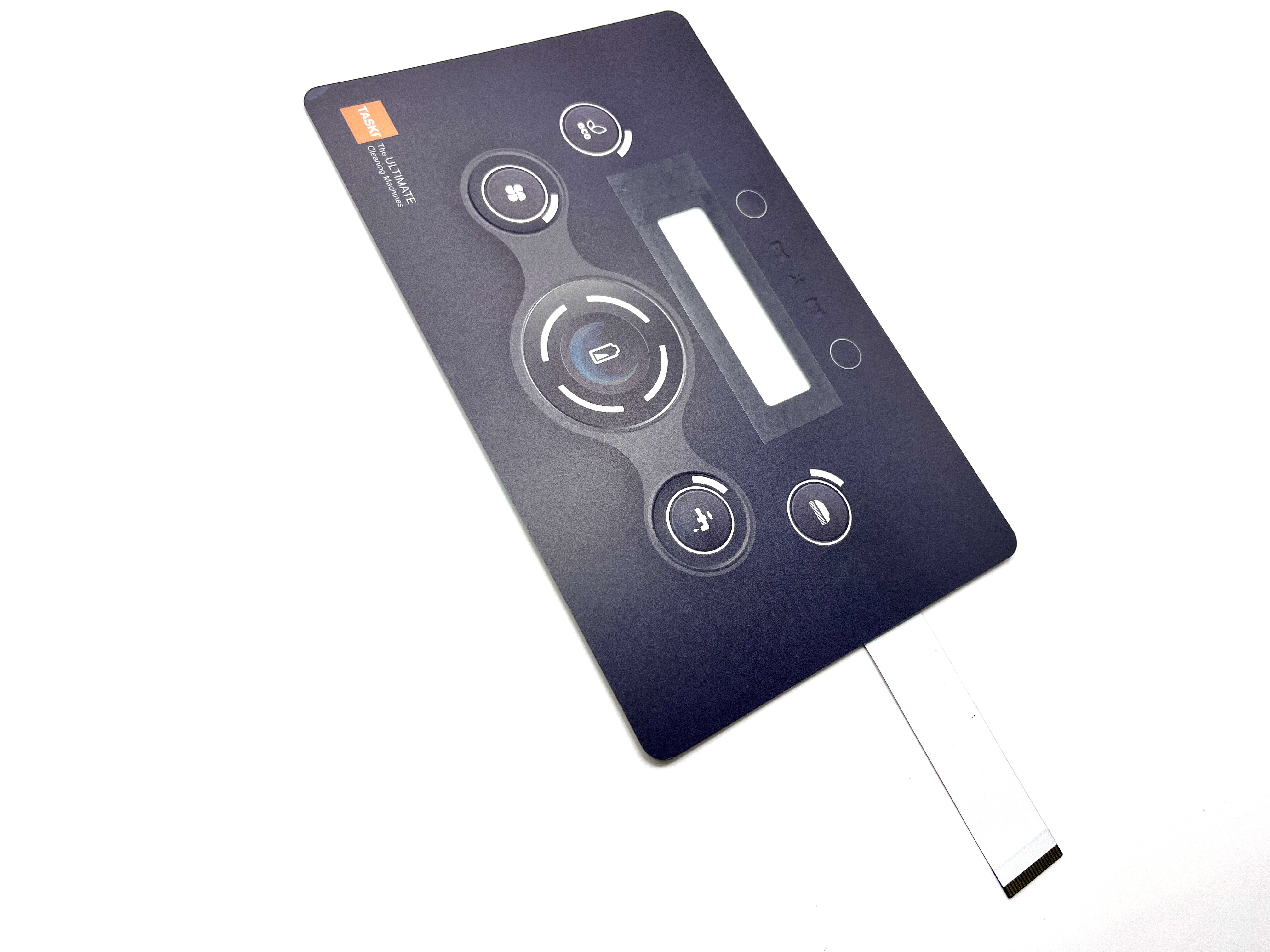

FPC Copper Circuit Waterproof Membrane Switch Keypad Suppliers With LED Mounting And ZIF Connector
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida Membrane Switches |
| Certification: | ISO9001,SGS,ROHS,REACH ,UL |
| Model Number: | 20241029-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags ,Custom design Carton with foam |
| Delivery Time: | 5-7 days for sample lead time ;10-14 days for batch goods delivery time |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 12000+pcs+a month |
|
Detail Information |
|||
| Color: | Pantone ,RAL Or CMYK Or Samples | Button Type: | Embossing Metal Dome With Good Tactile |
|---|---|---|---|
| Actuation Time: | ≤10ms | Material: | FPC |
| Circuit Thickness: | 0.125mm | Contact Resistance: | ≤10Ω |
| Life Cycle: | 1 Million Actuations | Size: | Custom Design Based On Client Drawing Or Request |
| LCD Window: | Transparent Window Display | ZIF Connector Pitch: | 1.25MM |
| Waterproof Grade: | IP65-IP67 | ||
| Highlight: | Waterproof Membrane Switch Keypad,LED Mounting Membrane Switch Keypad,ZIF Connector Membrane Switch Keypad |
||
Product Description
FPC Copper Circuit Waterproof Membrane Switch Keypad Suppliers With LED Mounting And ZIF Connector
Molex
- Provides a wide range of electronic components, including membrane switches.
- Known for high-quality manufacturing processes.
Graphic Controls
- Focuses on custom solutions for various industries.
- Offers design services and a quick turnaround.
Allied Electronics
- Supplies a variety of electronic components, including membrane switches.
- Offers extensive product catalogs and support.
Sierra Coating Technologies
- Provides custom membrane switches with various printing technologies.
- Known for durable and high-quality products.
JAMMA Corporation
- Offers custom membrane switches and graphic overlays.
- Focuses on customer service and quality assurance.
Flexible Membrane switches specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
1 Highly versatile for embossing | 1 wide range of the surface finishes and thicknesses | |||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Flexible Membrane switch Performance Index:
|
More Photos show:
