Flexible 1.25MM Pitch Etch Copper Membrane Touch Switch With 3M Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 240705-212 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pcs |
|---|---|
| Price: | communication |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 90000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL, CMYK , |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM ,1.0MM ,1.25MM ,0.5MM | Adhesive: | 3M Adheisve Or Others |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit Or FPC Etching Circuit |
| Surface Finish: | Velvet Texture Or Glossy | Connector Brand: | ZIF Connector Or Female Connector |
| Highlight: | 1.25MM Pitch Membrane Touch Switch,Etch Copper Membrane Touch Switch,3M Adhesive Membrane Touch Switch |
||
Product Description

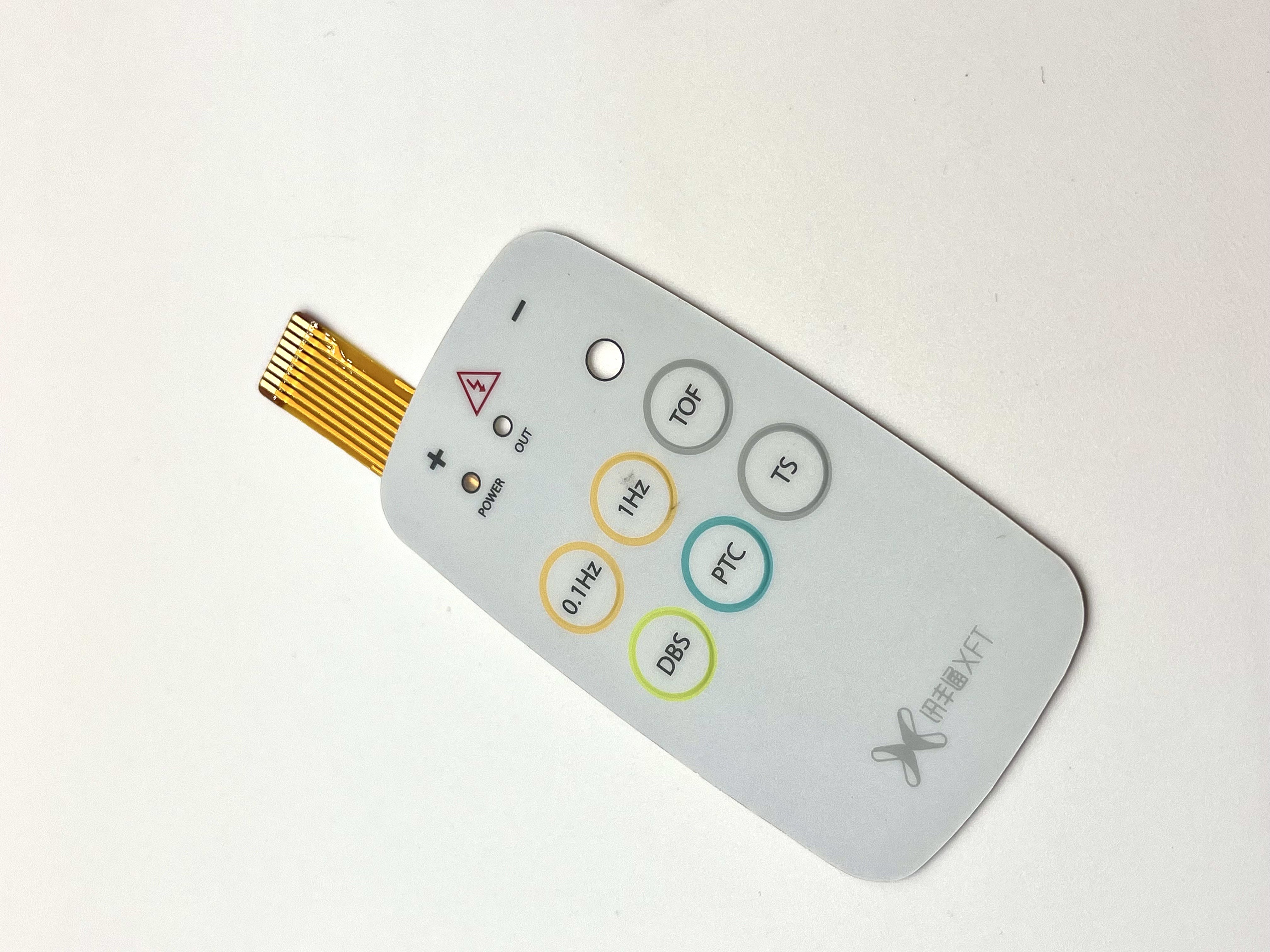

Flexible 1.25MM Pitch Etch Copper Membrane Touch Switch With 3M Adhesive
Flexible Membrane Touch Switch
Key Features
- Flexible Design: Allows for installation on curved or irregular surfaces, making it versatile for various applications.
- 1.25mm Pitch: This refers to the distance between the centers of adjacent conductive traces or pads, which enables compact design while maintaining functionality.
- Etch Copper: The use of copper etching allows for precise and customizable circuit designs. It provides good conductivity and can be tailored to specific layouts.
Adhesive
- 3M Adhesive: Known for its strong bonding properties, 3M adhesive ensures that the touch switch can be securely mounted to surfaces. This is particularly beneficial for applications where durability and reliability are critical.
Applications
- Consumer Electronics: Common in devices like smartphones, tablets, and wearables.
- Home Appliances: Used in control panels for microwaves, ovens, and other household devices.
- Industrial Equipment: Suitable for control interfaces in machinery and devices.
Advantages
- Space Efficiency: The compact design is ideal for modern electronics where space is at a premium.
- User Interface: Provides a smooth and modern touch interface for users.
- Durability: The membrane construction can withstand repeated use, and the adhesive ensures long-term performance.
Considerations
- Environmental Factors: Ensure compatibility with the operating environment (temperature, humidity).
- Electrical Specifications: Check the voltage and current ratings to ensure the switch meets your requirements.
- Design Integration: Consider how the switch will be integrated into your overall product design, including any necessary circuitry.
Product Descriptions :
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing |
1 wide range of the surface finishes and thicknesses |
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
Common membrane keypad structure choose :
Other photo show :
Electrical Properties:
1, operating voltage: ≤ 50VDC
2, working current: ≤ 100mA
3 Contact resistance: 0.5 ~ 5Ω
4 Insulation resistance: ≥ 100MΩ (100VDC)
5, substrate voltage: 2kDVC
6, spring time: ≤ 6ms
7, loop resistance: 60Ω
8, insulation ink voltage: 100VDC
Our Services :
1 Reply your inquiry within 24 working hours
2 Customize design is available ,OEM and ODM are welcome
3 Experienced Staffs answer your all question in professional and fluent English
4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs
5 Good service ,High quality ,test all goods and short lead time supply
6 we can make any shape ,size ,color ,technology such like button ,LED mounted ,sensor mounted ,and so on based on your request
7 Before mass goods ,we will supply the sample for your approved ,before proofing ,we will design the artwork for your confirm first ,both of them are in order to reduce the cost in the mass goods for you
